HEPA Filter
Your Leading HEPA Filter Supplier
Estalbished in 2010, Suzhou National Purification Technology Co., Ltd. (SNAF) is a production-oriented enterprise integrating R & D, design and intelligent manufacturing.and has become one of the leading companies in the air filtration industry. A HEPA filter is not like any regular air filter you typically put in your home. HEPA filters are pleated mechanical air filters that have a considerable thickness in order to capture the particulates. The pleats create a mat of fibers that are randomly arranged. The random, dense arrangement of fibers in the HEPA filter help to catch a range of particle sizes. As air particles pass through the air filter, they are caught by three mechanisms: diffusion, interception, and impaction.
Why Choose Us?
Production Strength
National Group has invested 150 million yuan, with a total construction area of about 35,000 square meters, including about 4,000 square meters of clean workshops.
Production Market
SNAF mainly export to USA, Japan, Germany, Bulgaria, Singapore, South Korea, Thailand, Dubai, Kazakhstan, etc.
Advanced Equipment
The factory is equipped with modern production equipment, automated production lines and professional testing equipment, which can stably mass-produce qualified products.
Complete Qualifications
SNAF has obtained ISO9001 quality management system certification, ISO14001 environmental management system certification, EU CE certification and US UL certification, and have more than 50 domestic and foreign patents.

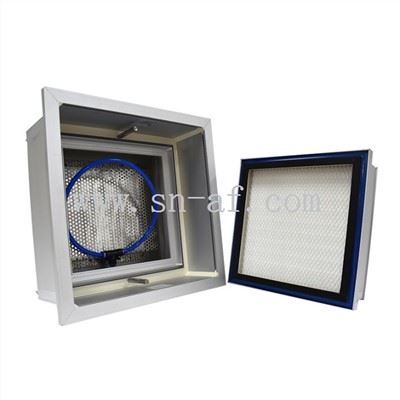

Gel Seal HEPA Filter
The gel seal HEPA filters are mainly used for pharmaceutical industries. The fluid gel can help provide better seal to prevent air leakages. All of the gel seal HEPA filters are mini pleated filter media, aluminum alloy frame with slot to install gel seal. Slot positions are at the top of the frame or side of the frame.

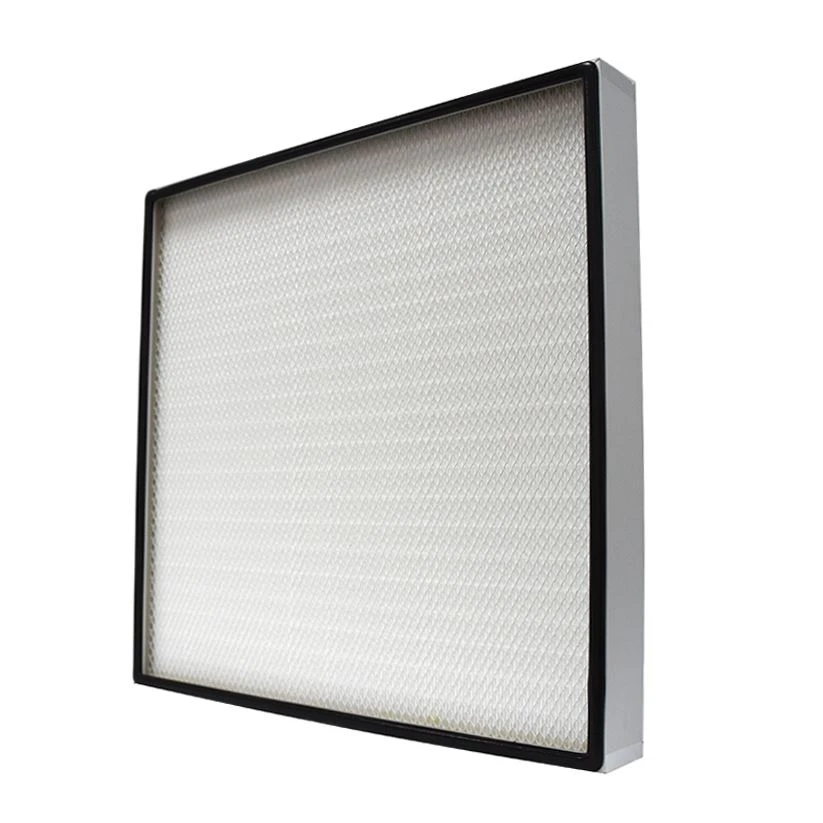

H13 Mini-Pleat HEPA Filter
Mini-pleat Filter refers to the filters, overall appearance of a box-shaped, whose material using hot melt to separate. This kind of products is the most common high-efficiency filter in today's purification industry, applied to the terminal of a variety of clean plant filtration, cleaning workbench local purification.
Specifications of HEPA Filter
|

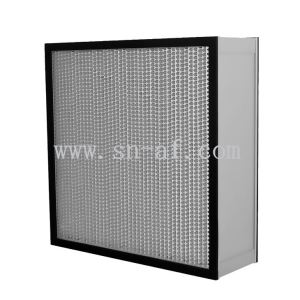

Separator HEPA Filter |
|||||||||||
|
Number |
Model |
L |
W |
H |
Area |
Airflow.pressure drop |
|||||
|
Mm |
Mm |
Mm |
M2 |
0.75m/s |
H13(Pa) |
H14(Pa) |
1.0m/s |
H13(Pa) |
H14(Pa) |
||
|
1 |
Y13320320150 |
320 |
320 |
150 |
3.1 |
276 |
200 |
220 |
369 |
250 |
275 |
|
2 |
Y13484484150 |
484 |
484 |
150 |
7 |
632 |
200 |
220 |
843 |
250 |
275 |
|
3 |
Y13595595150 |
595 |
595 |
150 |
10.6 |
956 |
200 |
220 |
1274 |
250 |
275 |
|
4 |
Y13610610150 |
610 |
610 |
150 |
11.2 |
1005 |
200 |
220 |
1340 |
250 |
275 |
|
5 |
Y131220610150 |
1220 |
610 |
150 |
22.3 |
2009 |
200 |
220 |
2679 |
250 |
275 |
|
6 |
Y13320320220 |
320 |
320 |
220 |
4.5 |
276 |
150 |
165 |
369 |
220 |
242 |
|
7 |
Y13484484220 |
484 |
484 |
220 |
10.3 |
632 |
150 |
165 |
843 |
220 |
242 |
|
8 |
Y13595595220 |
595 |
595 |
220 |
15.6 |
956 |
150 |
165 |
1274 |
220 |
242 |
|
9 |
Y13610610220 |
610 |
610 |
220 |
16.4 |
1005 |
150 |
165 |
1340 |
220 |
242 |
|
10 |
Y131220610220 |
1220 |
610 |
220 |
32.7 |
2009 |
150 |
165 |
2679 |
220 |
242 |
|
11 |
Y13320320292 |
320 |
320 |
292 |
6 |
553 |
250 |
275 |
922 |
350 |
385 |
|
12 |
Y13484484292 |
484 |
484 |
292 |
13.7 |
1265 |
250 |
275 |
2108 |
350 |
385 |
|
13 |
Y13595595292 |
595 |
595 |
292 |
20.7 |
1912 |
250 |
275 |
3186 |
350 |
385 |
|
14 |
Y13610610292 |
610 |
610 |
292 |
21.7 |
2009 |
250 |
275 |
3349 |
350 |
385 |
|
15 |
Y131220610292 |
1220 |
610 |
292 |
43.5 |
4019 |
250 |
275 |
6698 |
350 |
385 |
|
If H14 is used, please change Y13 to Y14 in model number, resistance refer to H14 PA list,others do not change. |
|||||||||||
|
Note: Pressure drop ±10% |
|||||||||||
Features of HEPA Filter
- Adopt special folding machine for manufacturing
- Using special glass fiber filter paper as the filter material
- Using special aluminum foil as Separator
- Each filter is through rigorous testing
Customization Options
Size: Customizable
Frame: Extruded anodized Aluminum profile
Separators: Hot melt
Media: Wet-laid Glass fiber
Sealant: Polyurethane
Temperature: Customizable
Humidity: Customizable
Test: Each filter is individually tested
Applications: Terminal air supply housing, FFU, clean equipments
Usage of HEPA Filter
Powder Coating
HEPA filters are used in powder coating booths to capture overspray particles, ensuring a clean work environment and preventing contamination during the coating process. They help maintain high-quality finishes by filtering out particulate matter.
01
Metalworking
In metalworking, HEPA filters are used in dust collection systems to remove fine metal particles and fumes generated during cutting, grinding and welding processes.
02
Food Processing
HEPA filters are critical in food processing facilities to maintain a sterile environment by filtering out airborne contaminants such as dust and bacteria.
03
Pharmaceutical
HEPA filters are used in pharmaceutical cleanrooms to remove airborne particles, including bacteria and viruses, ensuring a sterile production environment for medications and vaccines.
04
Laser or Plasma Cutting
HEPA filters are employed in laser or plasma-cutting operations to capture the fine particulate matter and fumes produced during the cutting process.
05
Certificates
Payment Terms
T.T with 30% downpayment, 70%before shipment.
Paypal or West Union also accept.
Packaging & Delivery
|
Packaging |
Inner packaging: Plastic film/foam/corrugated cardboard |
|
Outer packaging: Paper box/wooden box/pallet |
|
|
Shipping |
By logistics; by automobile; by train; by shipping; by air. |
As one of the leading hepa filter manufacturers and suppliers in China, we warmly welcome you to wholesale or buy bulk discount hepa filter for sale here from our factory. All customized products are with high quality and competitive price. Contact us for quotation.
