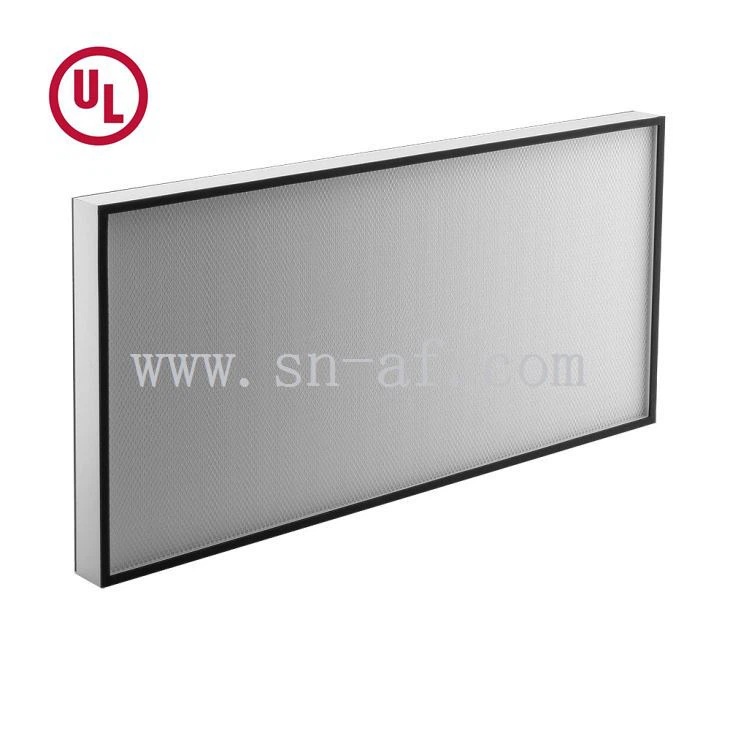

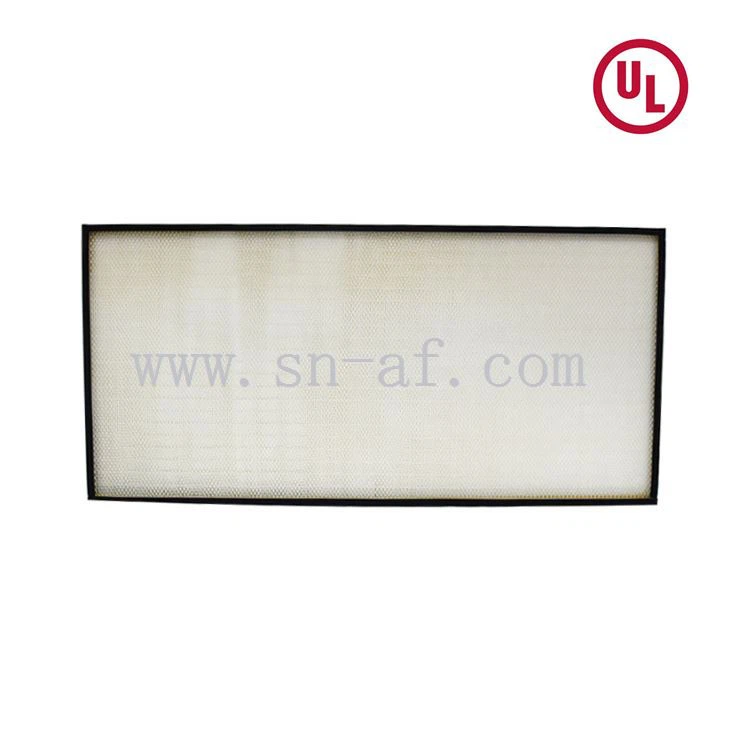

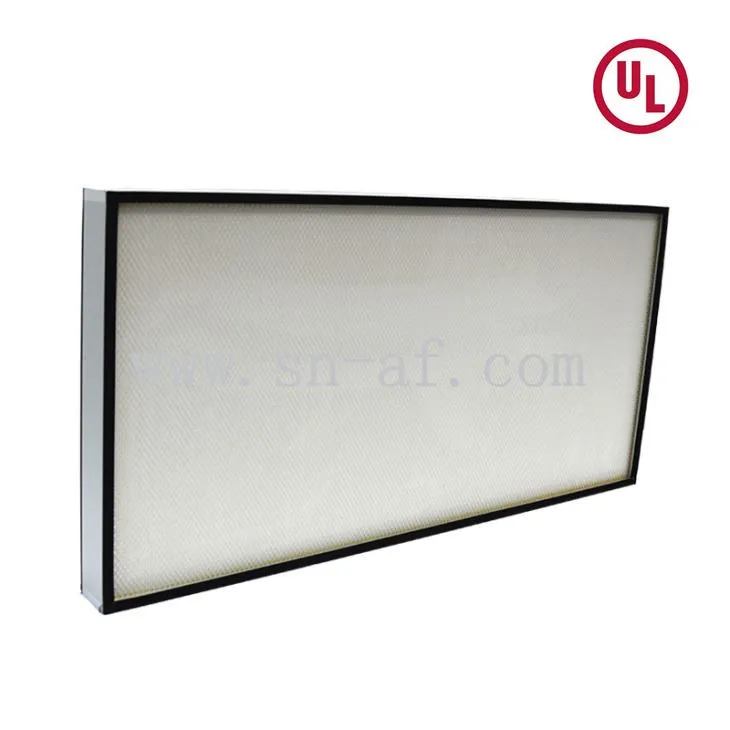

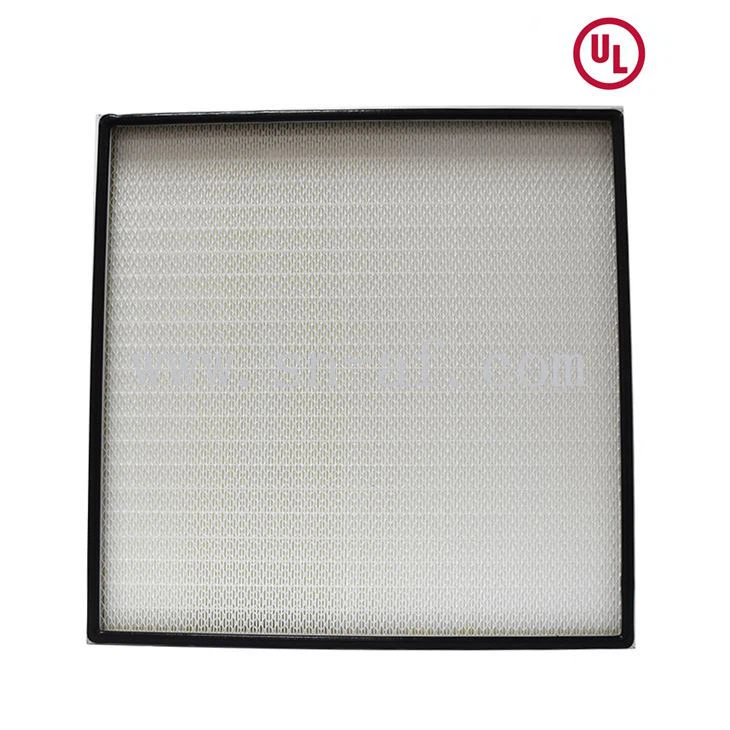

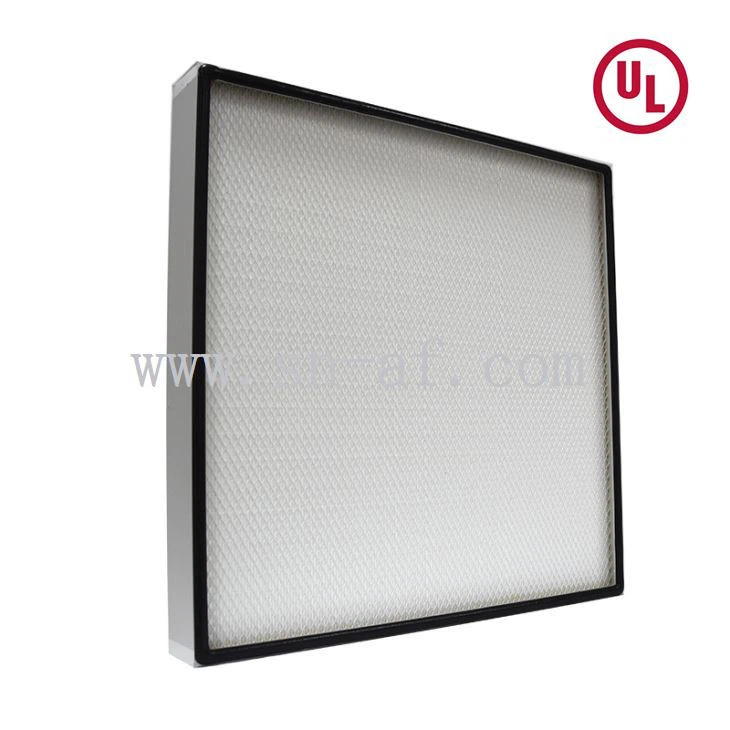

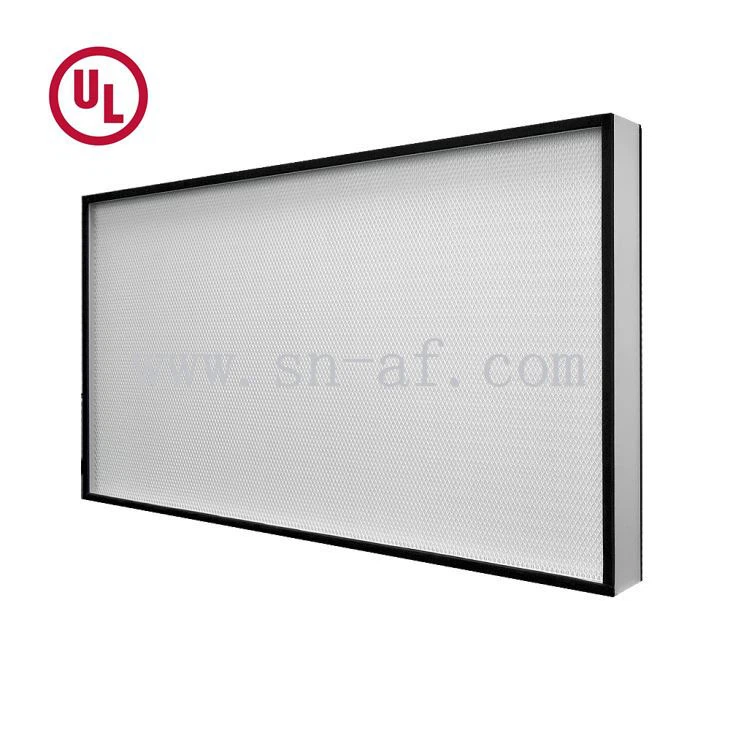

H14 Mini-Pleat HEPA Filter

Frame: Extruded anodized Aluminum profile

Separators: Hot melt

Media: Wet-laid Glass fiber

Sealant: Polyurethane

Gasket: EVAEPDM

Face guard: Expanded sheet metal, white, on inlet and outlet side

Efficiency: ≥99.995%at MPPS @0.45m/s ; ≥99.999%at 0.3um @0.45m/s

Temperature: ≤ 70℃

Humidity: ≤100%RH

Applications: Terminal air supply housing, FFU, clean equipments

Each filter is individually tested

Any size is available

H14 Mini-Pleat HEPA Filter
Number	Model	L	W	H	Area	Airflow.pressure drop						Efficiency
Number	Model	mm	mm	mm	m²	0.45m/s	Pa	0.75m/s	Pa	0.9m/s	Pa	Efficiency
1	H1432032069	870	320	69	7.3	451	120	752	185			H14
2	H1448448469	484	484	69	6.1	379	120	632	185			H14
3	H1457057069	570	570	69	8.5	526	120	877	185			H14
4	H1463063069	630	630	69	10.4	643	120	1072	185			H14
5	H1491561069	915	610	69	14.6	904	120	1507	185			H14
6	H1496848469	968	484	69	12.2	759	120	1265	185			H14
7	H14117057069	1170	570	69	17.4	1080	120	1801	185			H14
8	H141170117069	1170	1170	69	35.7	2218	120	3696	185			H14
9	H14122061069	1220	610	69	19.4	1206	120	2009	185			H14

10	H1432032080	320	320	80	3.1	166	105	276	165	332	200	H14
11	H1448448480	484	484	80	7.1	379	105	632	165	759	200	H14
12	H1457057080	570	570	80	9.8	526	105	877	165	1053	200	H14
13	H1463063080	630	630	80	12.0	643	105	1072	165	1286	200	H14
14	H1491561080	915	610	80	16.9	904	105	1507	165	1808	200	H14
15	H1496848480	968	484	80	14.2	759	105	1265	165	1518	200	H14
16	H14117057080	1170	570	80	20.2	1080	105	1801	165	2161	200	H14
17	H141170117080	1170	1170	80	41.4	2218	105	3696	165	4435	200	H14
18	H14122061080	1220	610	80	22.5	1206	105	2009	165	2411	200	H14

19	H1432032093	320	320	93	3.6	166	85	276	140	332	165	H14
20	H1448448493	484	484	93	8.2	379	85	632	140	759	165	H14
21	H1457057093	570	570	93	11.4	526	85	877	140	1053	165	H14
22	H1463063093	630	630	93	14.0	643	85	1072	140	1286	165	H14
23	H1491561093	915	610	93	19.6	904	85	1507	140	1808	165	H14
24	H1496848493	968	484	93	16.5	759	85	1265	140	1518	165	H14
25	H14117057093	1170	570	93	23.4	1080	85	1801	140	2161	165	H14
26	H141170117093	1170	1170	93	48.1	2218	85	3696	140	4435	165	H14
27	H14122061093	1220	610	93	26.2	1206	85	2009	140	2411	165	H14

28	H14320320110	320	320	110	4.3	166	70	276	110	332	130	H14
29	H14484484110	484	484	110	9.7	379	70	632	110	759	130	H14
30	H14570570110	570	570	110	13.5	526	70	877	110	1053	130	H14
31	H14630630110	630	630	110	16.5	643	70	1072	110	1286	130	H14
32	H14915610110	915	610	110	23.2	904	70	1507	110	1808	130	H14
33	H14968484110	968	484	110	19.5	759	70	1265	110	1518	130	H14
34	H141170570110	1170	570	110	27.7	1080	70	1801	110	2161	130	H14
35	H1411701170110	1170	1170	110	56.9	2218	70	3696	110	4435	130	H14
36	H141220610110	1220	610	110	30.9	1206	70	2009	110	2411	130	H14
