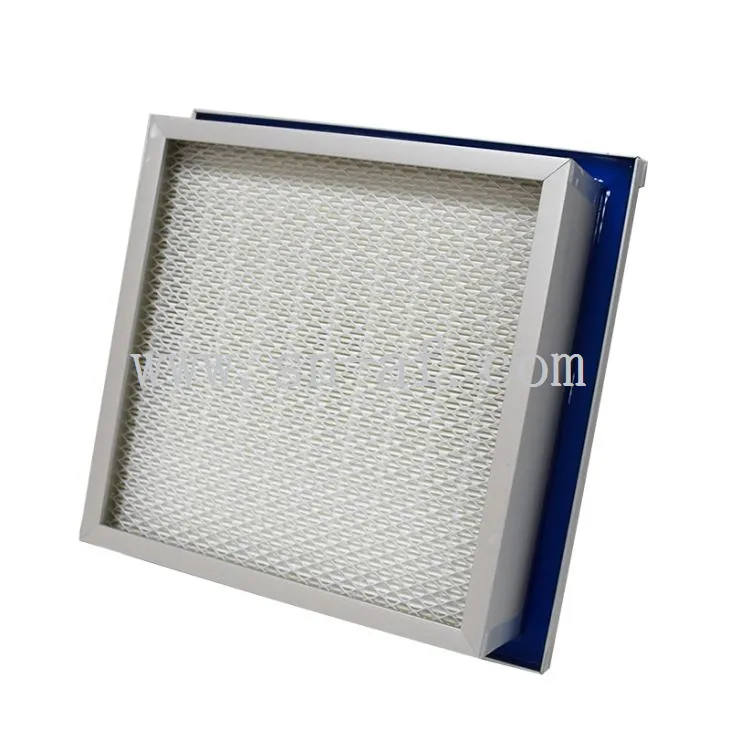

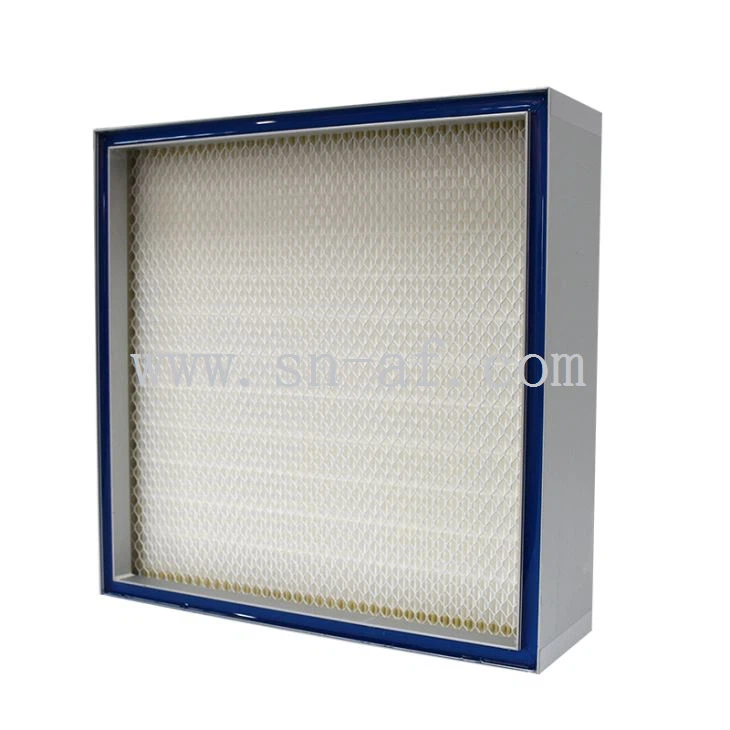

Gel Seal HEPA Filter

Pharmaceutical gel seal cleanroom HEPA filters

The gel seal HEPA filters are mainly used for pharmaceutical industries. The fluid gel can help provide better seal to prevent air leakages. Normal HEPA filters the gasket is EVA neoprene around the frame. As the fluid gel is semisolid with good fluidity, the gel can create enough shape modification to install the slot between frames with the filter holder.

All of the gel seal HEPA filters are mini pleated filter media, aluminum alloy frame with slot to install gel seal. Slot positions are at the top of the frame or side of the frame.

These filters can remove a broad range of airborne contaminants. They can be used as final filters in hospital, pharmaceutical aerospace, and food processing industry, also can be used as HEPA Filter for the most demand clean rooms.

Frame: Extruded anodized Aluminium profile

Separators: Hot melt

Media: Wet-laid Glass fiber

Sealant: Polyurethane, fluid gel

Temperature: ≤70℃

Humidity: ≤100%RH

Gasket: EVA

Faceguard: Expanded sheet metal, white, on inlet and outlet side.

Applications: Terminal air supply housing, FFU, clean equipments

Any size is available

Gel Seal HEPA Filter
Number	Model	L	W	H	Area	Airflow.pressure drop						Efficiency
Number	Model	mm	mm	mm	m²	0.45m/s	Pa	0.75m/s	Pa	1.0m/s	Pa	Efficiency
1	YC32032080	870	320	80	8.4	451	105	752	155	1002	195	H14+
2	YC48448480	484	484	80	7.1	379	105	632	155	843	195	H14+
3	YC57057080	570	570	80	9.8	526	105	877	155	1170	195	H14+
4	YC63063080	630	630	80	12.0	643	105	1072	155	1429	195	H14+
5	YC91561080	915	610	80	16.9	904	105	1507	155	2009	195	H14+
6	YC96848480	968	484	80	14.2	759	105	1265	155	1687	195	H14+
7	YC117057080	1170	570	80	20.2	1080	105	1801	155	2401	195	H14+
8	YC1170117080	1170	1170	80	41.4	2218	105	3696	155	4928	195	H14+
9	YC122061080	1220	610	80	22.5	1206	105	2009	155	2679	195	H14+

10	YC32032093	320	320	93	3.6	166	75	276	140	369	200	H14+
11	YC48448493	484	484	93	8.2	379	75	632	140	843	200	H14+
12	YC57057093	570	570	93	11.4	526	75	877	140	1170	200	H14+
13	YC63063093	1150	630	93	25.5	1174	75	1956	140	2608	200	H14+
14	YC91561093	915	610	93	19.6	904	75	1507	140	2009	200	H14+
15	YC96848493	968	484	93	16.5	759	75	1265	140	1687	200	H14+
16	YC117057093	1170	570	93	23.4	1080	75	1801	140	2401	200	H14+
17	YC1170117093	1170	1170	93	48.1	2218	75	3696	140	4928	200	H14+
18	YC122061093	1220	610	93	26.2	1206	75	2009	140	2679	200	H14+
