PTFE Filter

Your Leading PTFE Filter Supplier

Estalbished in 2010, Suzhou National Purification Technology Co., Ltd. (SNAF) is a production-oriented enterprise integrating R & D, design and intelligent manufacturing. SNAF mainly produce FFU, PTFE filter, air cleaning equipments and all grades of air filters, etc. PTFE filters are the versatile choice for size-selective samplers. The material's unique properties make it ideal for gravimetric, chemical, and/or microscopic analysis of sample particulate. PTFE filters are used for aerosol sampling, air venting and gas filtration.

Add to Inquiry

EPTFE Pleated HEPA Air Purifier Filter

This ePTFE HEPA Filter is designed for HEPA Air Purifiers.. Use ePTFE HEPA Filter to remove 99.99%

Add to Inquiry

PTFE Filter Clean Room

Frame: Extruded anodized Aluminum profile . Separators: Hot melt . Media: PTFE . Sealant:

Why Choose Us?

Production Strength

National Group has invested 150 million yuan, with a total construction area of about 35,000 square meters, including about 4,000 square meters of clean workshops.

Production Market

SNAF mainly export to USA, Japan, Germany, Bulgaria, Singapore, South Korea, Thailand, Dubai, Kazakhstan, etc.

Advanced Equipment

The factory is equipped with modern production equipment, automated production lines and professional testing equipment, which can stably mass-produce qualified products.

Complete Qualifications

SNAF has obtained ISO9001 quality management system certification, ISO14001 environmental management system certification, EU CE certification and US UL certification, and have more than 50 domestic and foreign patents.

Types of PTFE Filter

EPTFE Pleated HEPA Air Purifier Filter
This ePTFE HEPA Filter is designed for HEPA Air Purifiers. Use ePTFE HEPA Filter to remove 99.99% of airborne irritants that pass through the filter including pollen, dust, mold spores, pet dander, smoke, viruses, bacteria and more.

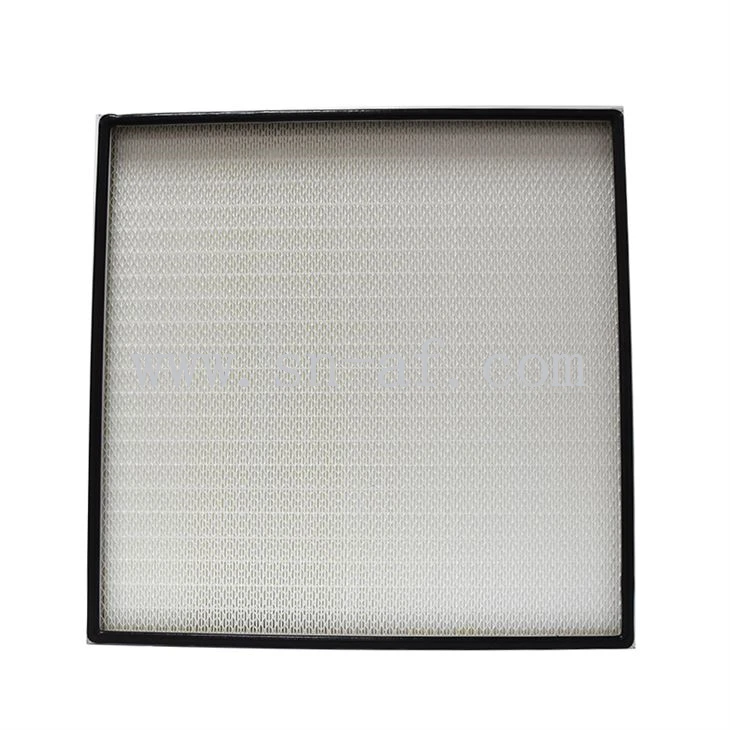

PTFE Filter Clean Room
PTFE is a filtration material that offers interesting features for cleanroom filtration compared to a glass fibre or polyester felt. The main advantages are the high efficiency with low-pressure drop and the low risk of contamination by the filter material. Cleanrooms require high-efficiency filtration systems to maintain air quality and prevent contamination. The choice of filter media plays a crucial role in ensuring a controlled environment, especially in industries like semiconductors, pharmaceuticals, and biotechnology.

Specifications of PTFE Filter

PTFE Filter
Num	Model	L	W	H	Area	Airflow.pressure drop		Maximum pressure drop	Efficiency
Num	Model	Mm	Mm	Mm	M²	0.45m/s	Pa	Pa	Efficiency
1	PH1457057069	570	570	69	8.4	526	50	500	H14
2	PH1461030569	600	305	69	4.8	296	50	500	H14
3	PH1461061069	610	610	69	9.7	603	50	500	H14
4	PH1491561069	915	610	69	14.5	904	50	500	H14
5	PH14117057069	1170	570	69	17.3	1080	50	500	H14
6	PH14117087069	1170	870	69	26.5	1649	50	500	H14
7	PH141170117069	1170	1170	69	35.6	2218	50	500	H14
8	PH1457057090	570	570	90	11.7	526	45	600	H14
9	PH1461030590	600	305	90	6.6	296	45	600	H14
10	PH1461061090	610	610	90	13.4	603	45	600	H14
11	PH1491561090	915	610	90	20.1	904	45	600	H14
12	PH14117057090	1170	570	90	24	1080	45	600	H14
13	PH14117087090	1170	870	90	36.6	1649	45	600	H14
14	PH141170117090	1170	1170	90	49.3	2218	45	600	H14
15	PU1557057069	570	570	69	8.4	526	100	500	U15
16	PU1561030569	600	305	69	4.8	296	100	500	U15
17	PU1561061069	610	610	69	9.7	603	100	500	U15
18	PU1591561069	915	610	69	14.5	904	100	500	U15
19	PU15117057069	1170	570	69	17.3	1080	100	500	U15
20	PU15117087069	1170	870	69	26.5	1649	100	500	U15
21	PU151170117069	1170	1170	69	35.6	2218	100	500	U15
22	PU1557057090	570	570	90	11.7	526	85	600	U15
23	PU1561030590	600	305	90	6.6	296	85	600	U15
24	PU1561061090	610	610	90	13.4	603	85	600	U15
25	PU1591561090	915	610	90	20.1	904	85	600	U15
26	PU15117057090	1170	570	90	24	1080	85	600	U15
27	PU15117087090	1170	870	90	36.6	1649	85	600	U15
28	PU151170117090	1170	1170	90	49.3	2218	85	600	U15
29	PU1657057069	570	570	69	8.4	526	115	500	U16
30	PU1661030569	600	305	69	4.8	296	115	500	U16
31	PU1661061069	610	610	69	9.7	603	115	500	U16
32	PU1691561069	915	610	69	14.5	904	115	500	U16
33	PU16117057069	1170	570	69	17.3	1080	115	500	U16
34	PU16117087069	1170	870	69	26.5	1649	115	500	U16
35	PU161170117069	1170	1170	69	35.6	2218	115	500	U16
36	PU1657057090	570	570	90	11.7	526	100	600	U16
37	PU1661030590	600	305	90	6.6	296	100	600	U16
38	PU1661061090	610	610	90	13.4	603	100	600	U16
39	PU1691561090	915	610	90	20.1	904	100	600	U16
40	PU16117057090	1170	570	90	24	1080	100	600	U16
41	PU16117087090	1170	870	90	36.6	1649	100	600	U16
42	PU161170117090	1170	1170	90	49.3	2218	100	600	U16

Note: Pressure drop ±10%

Features of PTFE Filter

Strong and resistant to acids, bases, and solvents;

Hydrophobic;

Low background, interference-free chemical determinations;

Low tare mass for accurate gravimetric analysis;

Temperature resistant to 260°C (500°F) — autoclavable;

Ideal for aerosol sampling, especially in environments also containing water vapour.

Customization Options

Frame: Customizable

Diaphragm: Hot melt adhesive

Media: PTFE/ePTFE

Gasket: EVAEPDM

Size: Customizable

Applications: Terminal air supply housing, FFU, clean equipments

Installation Steps of PTFE Filter

01/

Select the Right Filter
Select a PTFE filter that works with the particular solvent type and application you have in mind. SNAF provides a range of PTFE filters that are built to last and be dependable.

02/

Inspect for Integrity
Examine the filter for any flaws to prevent contamination or reduced efficiency.

03/

Attach to the Syringe or Filter Holder
To stop leaks, firmly place the PTFE filter onto the syringe or filter holder, making sure the connection is tight.

04/

Pre-Wet (if required)
If using the PTFE filter for aqueous solutions, it's necessary to pre-wet with alcohol or a compatible solvent to ensure proper flow.

05/

Begin Filtration
As you slowly press the syringe or turn on your filter, make sure that the PTFE membrane is being pushed through consistently.

06/

Post-Use Care
To preserve efficiency, dispose of single-use filters appropriately or clean reusable filters in accordance with the manufacturer's recommendations.

Payment Terms

T.T with 30% downpayment, 70%before shipment.

Paypal or West Union also accept.

Packaging and Delivery

Packaging	Inner packaging: Plastic film/foam/corrugated cardboard
Packaging	Outer packaging: Paper box/wooden box/pallet
Shipping	By logistics; by automobile; by train; by shipping; by air.

Certificates

productcate-1-1

FAQ

Q: Can the product be customized?

A: Yes, customized filters are available.

Q: What are your main products?

A: SNAF mainly produce FFU, air cleaning equipments and all grades of air filters, etc.

Q: Which customer groups does SNAF's products target?

A: Our main customers base: Listed companies, Large central state-owned enterprises, Multinational companies and high-quality private companies, etc.

Q: Are you a factory or trading company?

A: We are Top 5 professional factory with rich experience in clean room engineering in China,and we have 15 patents for our products.

Q: How is product quality guaranteed?

A: SNAF has obtained ISO9001 quality management system certification, ISO14001 environmental management system certification, EU CE certification and US UL certification, and have more than 50 domestic and foreign patents, winning the title of "High-tech Enterprise".

As one of the leading ptfe filter manufacturers and suppliers in China, we warmly welcome you to wholesale or buy bulk discount ptfe filter for sale here from our factory. All customized products are with high quality and competitive price. Contact us for quotation.
