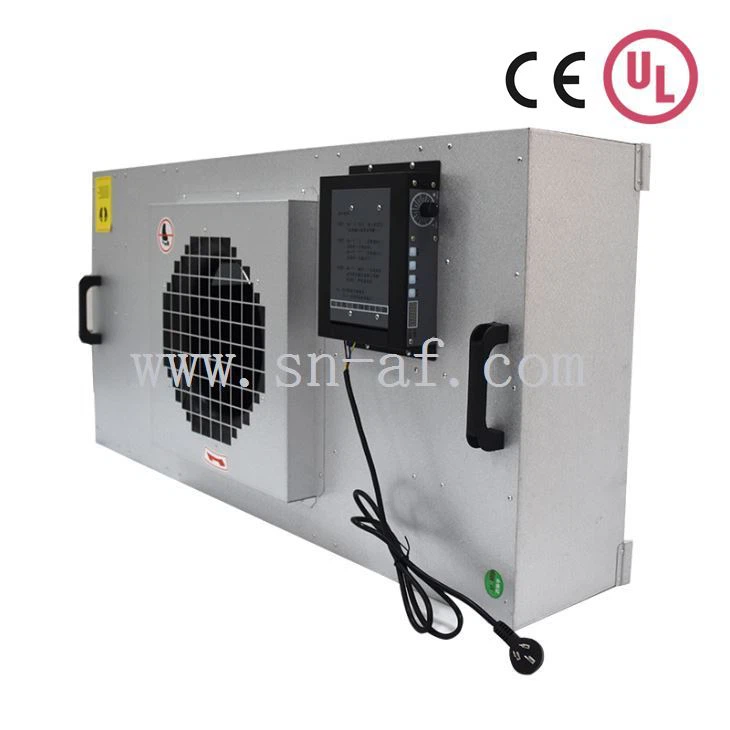

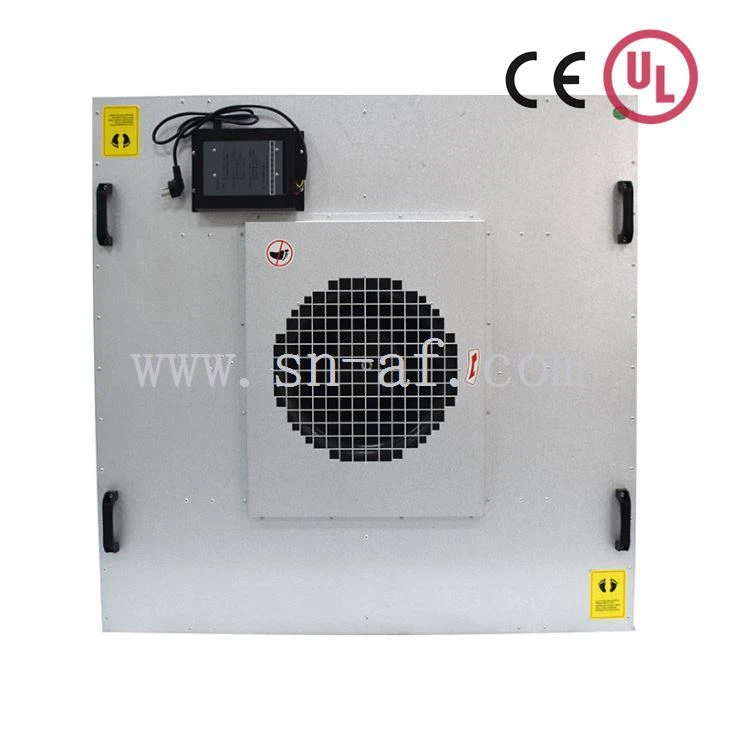

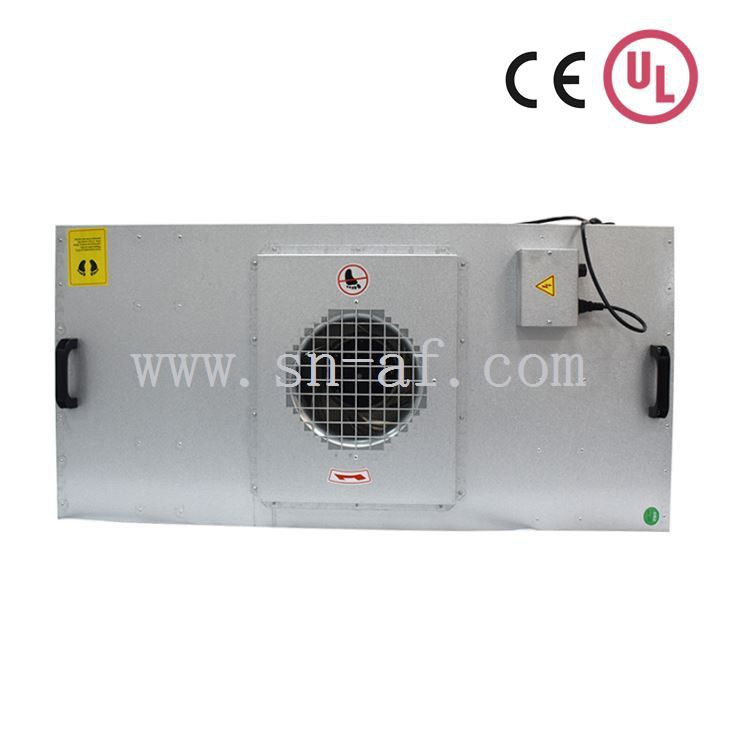

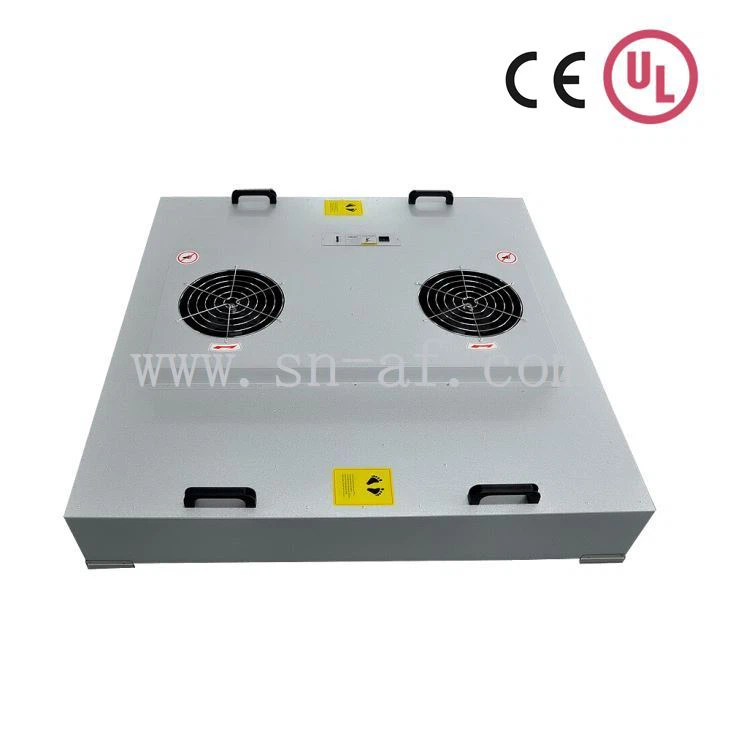

Fan Filter Unit
Features:
● Outer casing is made of galvanized sheet metal, stainless steel, electrolytic sheet, aluminum alloy sheet, compact structure, easy to install.
● Low power consumption, low running cost.
● Light weight and compact structure, easy to install.
● With a high-capacity fan, in long-term use under high static pressure, but can also maintain a low noise.
● Wide range of applications, fit a variety of clean room from FS209D Class 10,000~ Class 1.
Applications:
FFU system is convenient and flexible, can be applied to any structure and the level of the clean room. It can also be used in other cleaning devices, such as: portable clean room, clean bench, clean corridors and so on.
| Fan Filter Unit | |||||||||||||
| AC Motor | |||||||||||||
| Number | Model | L | W | H | Filter dimension | Airspeed | Airflow | Total pressure | Power | Watt | Noise | Virbration | GI casing |
| mm | mm | mm | mm*mm*mm | m/s | m³/h±25% | Pa | V | W | dba | mm/s | |||
| 1 | AC-2*2 | 575 | 575 | 200-400 | 570*570*70 | 0.3-0.5 | 476.1 | 170-210 | 220-50HZ | 80-110 | 50-52 | 0.6-0.8 | Galvanized sheet metal |
| 2 | AC-3*2 | 875 | 575 | 200-400 | 870*570*70 | 0.3-0.5 | 724.5 | 170-210 | 220-50HZ | 110-140 | 50-52 | 0.8-1.0 | Galvanized sheet metal |
| 3 | AC-4*2 | 1175 | 575 | 200-400 | 1170*570*70 | 0.3-0.5 | 972.9 | 170-210 | 220-50HZ | 140-160 | 50-53 | 1.0-1.2 | Galvanized sheet metal |
| 4 | AC-4*3 | 1175 | 875 | 200-400 | 1170*870*70 | 0.3-0.5 | 1480.5 | 170-210 | 220-50HZ | 175-225 | 53-55 | 1.2-1.4 | Galvanized sheet metal |
| 5 | AC-4*4 | 1175 | 1175 | 200-400 | 1170*1170*70 | 0.3-0.5 | 1988.1 | 170-210 | 220-50HZ | 245-305 | 53-57 | 1.2-1.4 | Galvanized sheet metal |
| DC Motor | |||||||||||||
| 1 | DC-2*2 | 575 | 575 | 200-400 | 570*570*70 | 0.3-0.5 | 476.1 | 120-230 | 220-50HZ | 40-80 | 45-52 | 0.6-0.8 | Galvanized sheet metal |
| 2 | DC-3*2 | 875 | 575 | 200-400 | 870*570*70 | 0.3-0.5 | 724.5 | 120-230 | 220-50HZ | 40-100 | 48-52 | 0.8-1.0 | Galvanized sheet metal |
| 3 | DC-4*2 | 1175 | 575 | 200-400 | 1170*570*70 | 0.3-0.5 | 972.9 | 120-230 | 220-50HZ | 40-120 | 48-52 | 1.0-1.2 | Galvanized sheet metal |
| 4 | DC-4*2 | 1175 | 575 | 200-400 | 1170*570*70 | 0.3-0.5 | 972.9 | 120-280 | 220-50HZ | 40-150 | 48-55 | 1.0-1.2 | Galvanized sheet metal |
| 5 | DC-4*3 | 1175 | 875 | 200-400 | 1170*870*70 | 0.3-0.5 | 1480.5 | 120-280 | 220-50HZ | 60-180 | 48-55 | 1.2-1.4 | Galvanized sheet metal |
| 6 | DC-4*4 | 1175 | 1175 | 200-400 | 1170*1170*70 | 0.3-0.5 | 1988.1 | 120-230 | 220-50HZ | 60-180 | 50-55 | 1.2-1.4 | Galvanized sheet metal |
| 7 | DC-4*4 | 1175 | 1175 | 200-400 | 1170*1170*70 | 0.3-0.5 | 1988.1 | 120-280 | 220-50HZ | 60-280 | 50-57 | 1.2-1.4 | Galvanized sheet metal |
Non-standard size can be customized, the details according to the Tech Department.
FFU Optional:
Optional Casing:GI,SS304,SS201,SS430
Non-standard size can be customized
Motor:EC/DC/AC
Ultra-thin（optional), convenient for installation, operation and maintenance
Can be controlled by a single computer, centralized control by on-site and remote computer network, and remote monitoring
Filter optinal:ULPA Filter or PTFE Filter
| FAQ |
Q1: Can the product be customized?
A1: Yes, customized filters are available.
Q2: Are you a factory or trading company?
A2: We are Top 5 professional factory with rich experience in clean room engineering in China,and we have 15 patents for our products.
Q3: How long is the delivery time?
A3: It depends on the order quantity. Usually it takes about 7 to 15 working days after receiving your deposit.
Q4: How about the shipment?
A4: By sea, by air or by express, according to the Qty and your demand.
