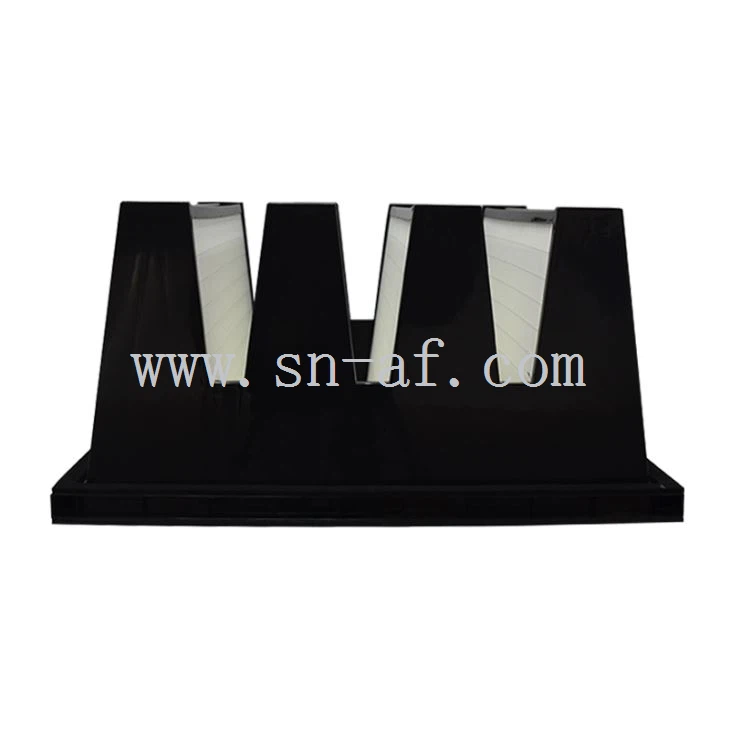

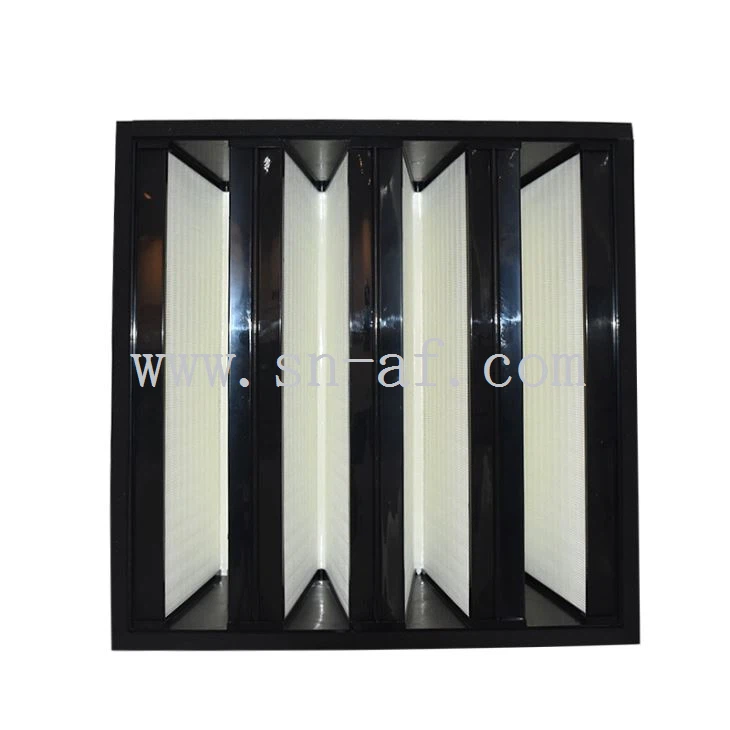

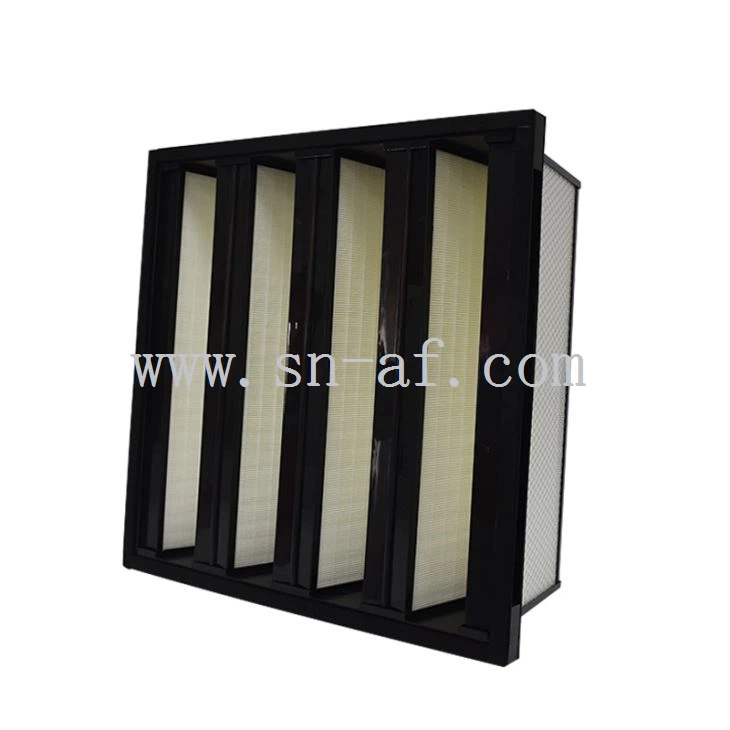

V-Bank Filter
Features:
● Provide three classifications of filter efficiency: high, sub-high and medium
● Adopt computer-controlled automatic production line for manufacture of mini pleat filter material
● Using special glass fiber filter paper as the filter material
● Frame can be made of galvanized sheet metal, stainless steel or Polypropylene
● Each filter is through rigorous testing
● Adopt international standards sizes
Frame: ABS or Galvanized sheet metal
Separators: Hot melt
Media: Wet-laid Glass fiber
Sealant: Polyurethane
Temperature: ≤70℃
Humidity: ≤100%RH
Efficiency:
F6 (EN779):60-65%ASHRAE52/76
F7 (EN779):90%ASHRAE52/76
F8 (EN779):95%ASHRAE52/76
F9 (EN779):98%ASHRAE52/76
H10 (EN 1822) ≥85atMPPS
H11 (EN 1822) ≥95atMPPS
H13 (EN 1822) ≥99.95atMPPS
H14 (EN 1822) ≥99.995atMPPS
Recommended final pressure drop: ≤600Pa
Applications: Clean room recirculation and MUA applications for AMC removal
| V-Bank Filter | ||||||||||
| Num | Model | L | W | H | Area | Airflow.pressure drop | Efficiency | |||
| mm | mm | mm | m2 | m3/h | Pa | m3/h | Pa | |||
| 1 | F6592592292 | 592 | 592 | 292 | 18.4 | 1700 | 40 | 3400 | 70 | F6 |
| 2 | F6592490292 | 592 | 490 | 292 | 15.2 | 1300 | 40 | 2700 | 70 | F6 |
| 3 | F6592287292 | 592 | 287 | 292 | 8.9 | 850 | 40 | 1700 | 70 | F6 |
| 4 | F7592592292 | 592 | 592 | 292 | 19.0 | 1700 | 50 | 3400 | 90 | F7 |
| 5 | F7592490292 | 592 | 490 | 292 | 15.0 | 1300 | 50 | 2700 | 90 | F7 |
| 6 | F7592287292 | 592 | 287 | 292 | 9.0 | 850 | 50 | 1700 | 90 | F7 |
| 7 | F8592592292 | 592 | 592 | 292 | 19.0 | 1700 | 60 | 3400 | 110 | F8 |
| 8 | F8592490292 | 592 | 490 | 292 | 15.0 | 1300 | 60 | 2700 | 110 | F8 |
| 9 | F8592287292 | 592 | 287 | 292 | 9.0 | 850 | 60 | 1700 | 110 | F8 |
| 10 | F9592592292 | 592 | 592 | 292 | 19.0 | 1700 | 80 | 3400 | 140 | F9 |
| 11 | F9592490292 | 592 | 490 | 292 | 15.0 | 1300 | 80 | 2700 | 140 | F9 |
| 12 | F9592287292 | 592 | 287 | 292 | 9.0 | 850 | 80 | 1700 | 140 | F9 |
| 13 | H10592592292 | 592 | 592 | 292 | 19.0 | 1700 | 150 | 3400 | 230 | H10 |
| 14 | H10592490292 | 592 | 490 | 292 | 15.0 | 1300 | 150 | 2700 | 230 | H10 |
| 15 | H10592287292 | 592 | 287 | 292 | 9.0 | 850 | 150 | 1700 | 230 | H10 |
| 16 | H11592592292 | 592 | 592 | 292 | 19.0 | 1700 | 170 | 3400 | 250 | H11 |
| 17 | H11592490292 | 592 | 490 | 292 | 15.0 | 1300 | 170 | 2700 | 250 | H11 |
| 18 | H11592287292 | 592 | 287 | 292 | 9.0 | 850 | 170 | 1700 | 250 | H11 |
| 16 | H13592592292 | 592 | 592 | 292 | 19.0 | 1700 | 190 | 3400 | 280 | H13 |
| 17 | H13592490292 | 592 | 490 | 292 | 15.0 | 1300 | 190 | 2700 | 280 | H13 |
| 18 | H13592287292 | 592 | 287 | 292 | 9.0 | 850 | 190 | 1700 | 280 | H13 |
| 16 | H14592592292 | 592 | 592 | 292 | 19.0 | 1700 | 210 | 3400 | 310 | H14 |
| 17 | H14592490292 | 592 | 490 | 292 | 15.0 | 1300 | 210 | 2700 | 310 | H14 |
| 18 | H14592287292 | 592 | 287 | 292 | 9.0 | 850 | 210 | 1700 | 310 | H14 |
If the single-flange galvanized iron frame to make v-type filter, the same parameters.
Note: Pressure drop ±10%
| FAQ |
Q1: Can the product be customized?
A1: Yes, customized filters are available.
Q2: Are you a factory or trading company?
A2: We are Top 5 professional factory with rich experience in clean room engineering in China,and we have 15 patents for our products.
Q3: How long is the delivery time?
A3: It depends on the order quantity. Usually it takes about 7 to 15 working days after receiving your deposit.
Q4: How about the shipment?
A4: By sea, by air or by express, according to the Qty and your demand.
