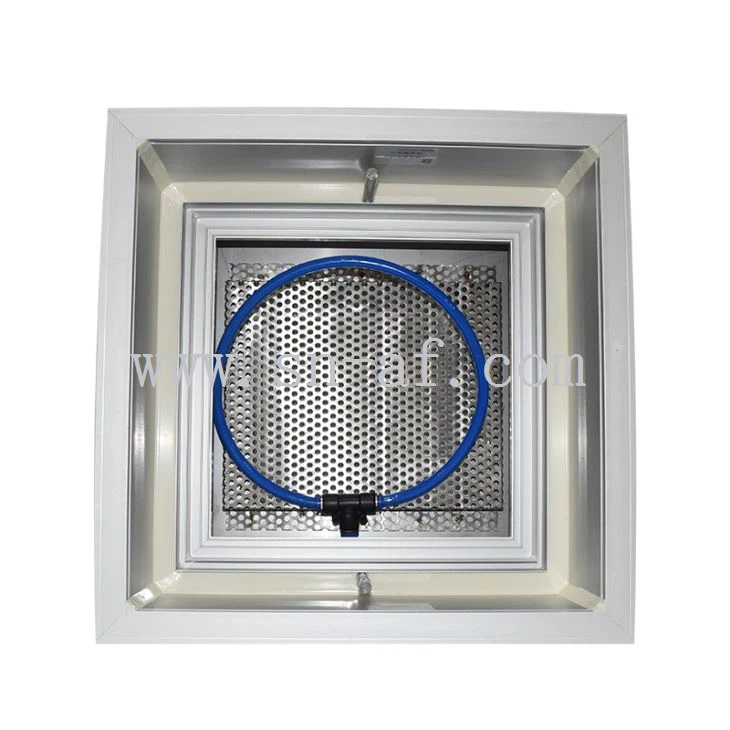

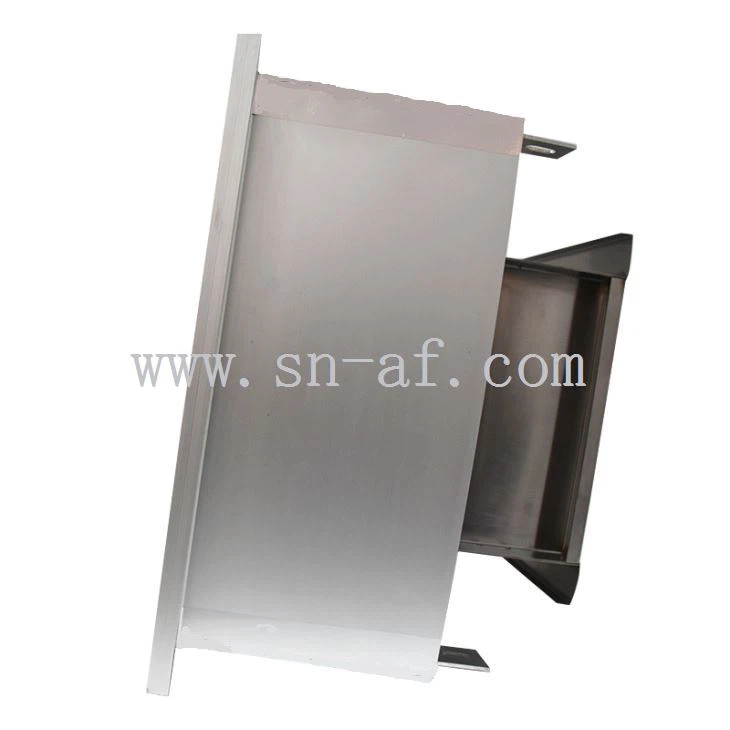

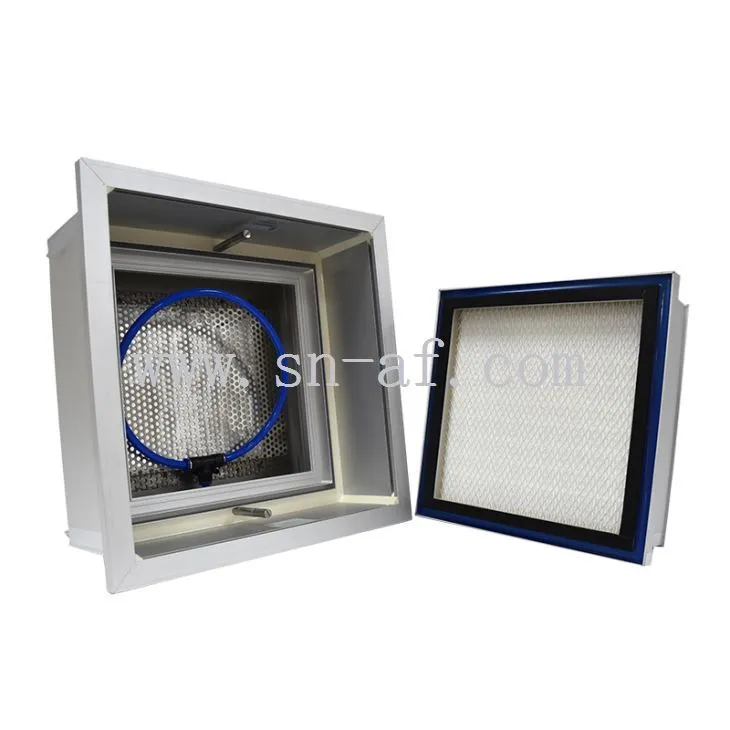

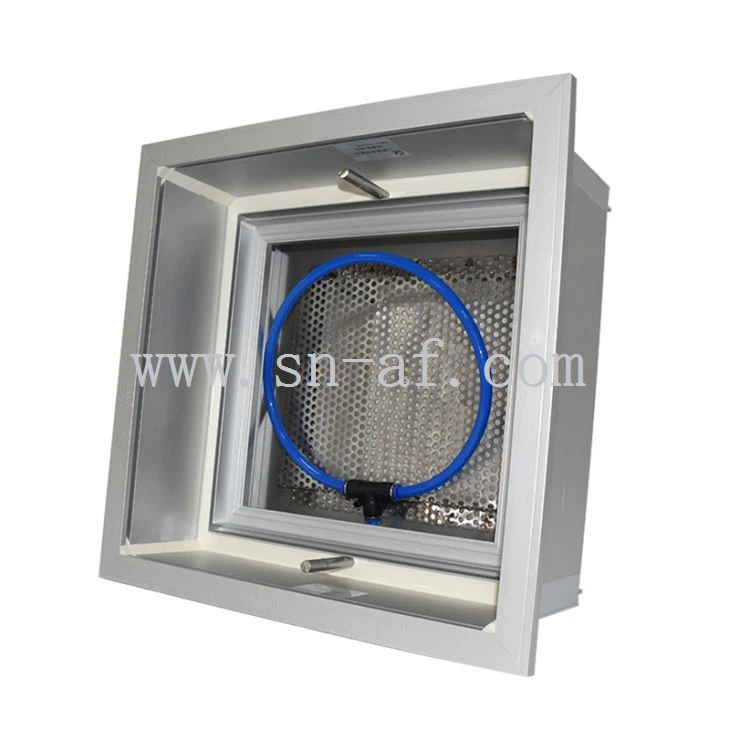

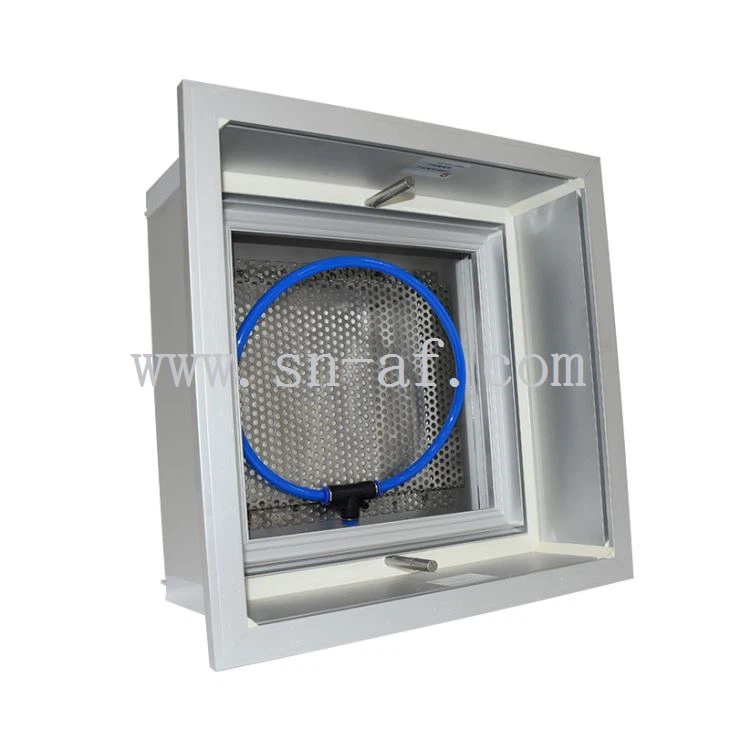

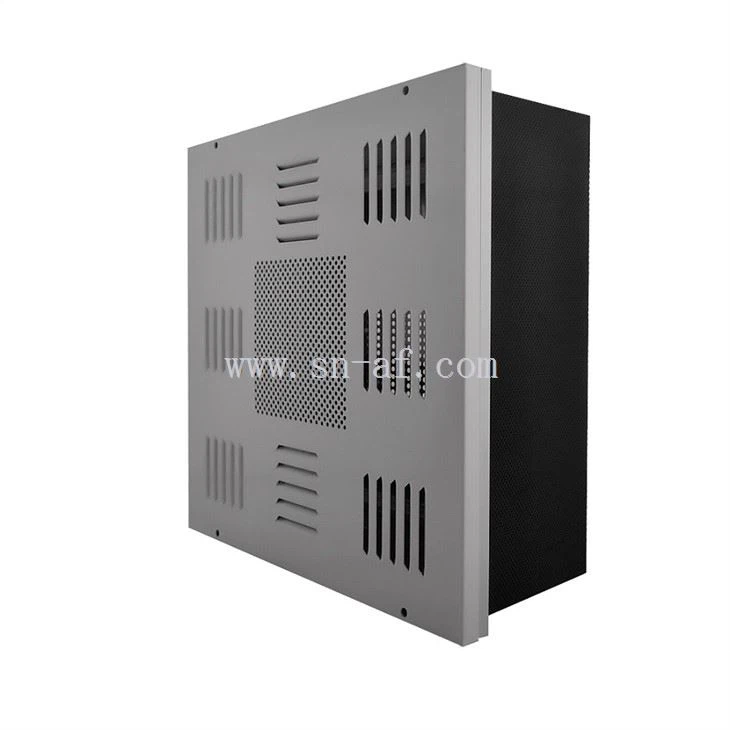

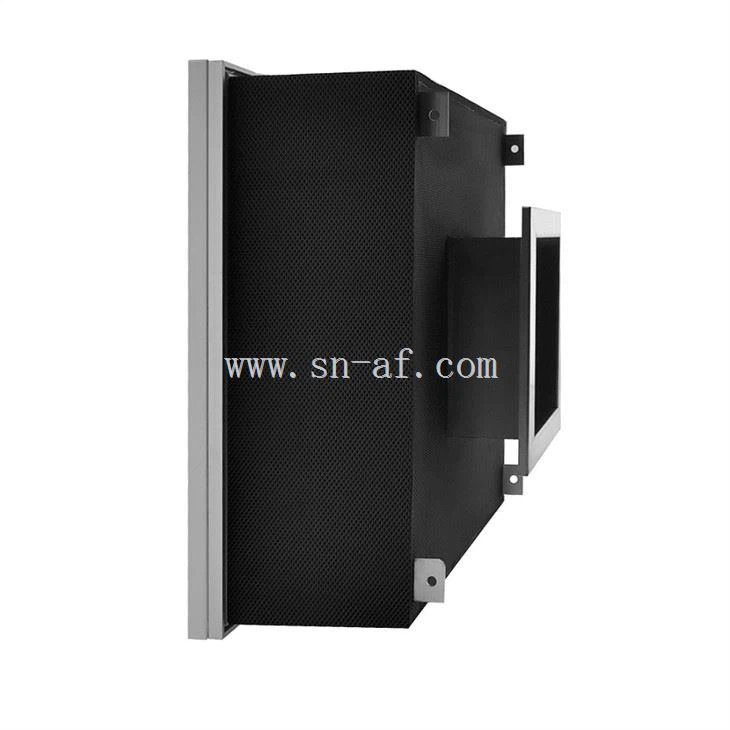

Gel Seal Silent Hood HEPA Box

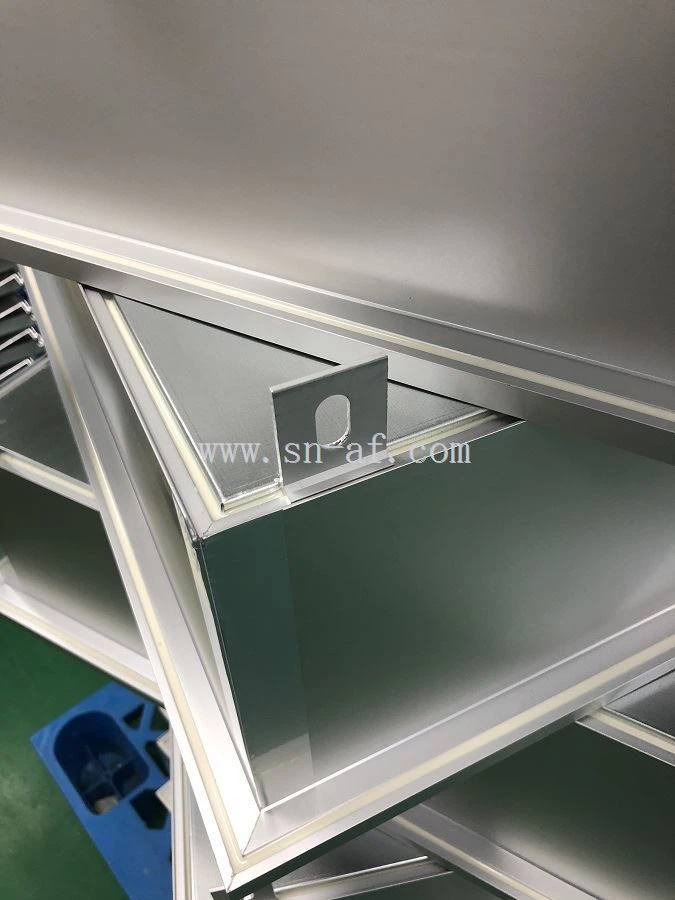

Frame: Extruded anodized Aluminum profile
Hood: galvanized sheet metal, integrated hangers.
Divider: one access port for leak testing and DP measurement
Diffuser material: Aluminum baking vanishes perforated or Stainless steel #304 perforated
Sealant: Polyurethane, fluid gel
Application: Mainly used for terminal filtration of Pharmaceuticals, hospitals, electronics and semiconductor industries, etc.
| Gel Seal Silent Hood HEPA Box | ||||||||||||
| Num | Model | L | W | H | GEL Filter dimention | Air speed | Airflow.pressure drop H13/H14 | Airlow | Inlet size | advised celling hole size | Insulation | |
| mm | mm | mm | mm*mm*mm | m/s | Pa | m3/h | mm | mm | mm | |||
| 1 | AFYC300 | 415 | 415 | 280 | 320*320*93 | 1.00 | 200 / 220 | 300 | 200*200 | 390 | 390 | 15mm |
| 2 | AFYC500 | 525 | 525 | 280 | 430*430*93 | 1.00 | 200 / 220 | 500 | 250*200 | 500 | 500 | 15mm |
| 3 | AFYC1000 | 625 | 625 | 280 | 530*530*93 | 1.00 | 200 / 220 | 1000 | 320*200 | 600 | 600 | 15mm |
| 4 | AFYC1500 | 725 | 725 | 280 | 630*630*93 | 1.00 | 200 / 220 | 1500 | 400*200 | 700 | 700 | 15mm |
| 5 | AFYC2000 | 1010 | 705 | 280 | 915*610*93 | 1.00 | 200 / 220 | 2000 | 500*200 | 985 | 680 | 15mm |
| 6 | AFYC2500 | 1265 | 665 | 280 | 1170*570*93 | 1.00 | 200 / 220 | 2500 | 600*200 | 1240 | 640 | 15mm |
| 7 | AFYC3500 | 1265 | 965 | 280 | 1170*870*93 | 1.00 | 200 / 220 | 3500 | 600*200 | 1240 | 940 | 15mm |
| 8 | AFYC5000 | 1265 | 1265 | 280 | 1170*1170*93 | 1.00 | 200 / 220 | 5000 | 600*200 | 1240 | 1240 | 15mm |
The air supply port has SUS304 Dust Hole (PAO or DOP) and SUS304 detection hole device (differential pressure port), the dust ring can choose plastic or SUS304.
The size of the hole will change according to the different profiles.
Non-standard size can be customized, the details according to the Tech Department.
FAQ
Q1: Can the product be customized?
A1: Yes, customized filters are available.
Q2: Are you a factory or trading company?
A2: We are Top 5 professional factory with rich experience in clean room engineering in China,and we have 15 patents for our products.
Q3: How long is the delivery time?
A3: It depends on the order quantity. Usually it takes about 7 to 15 working days after receiving your deposit.
Q4: How about the shipment?
A4: By sea, by air or by express, according to the Qty and your demand.
