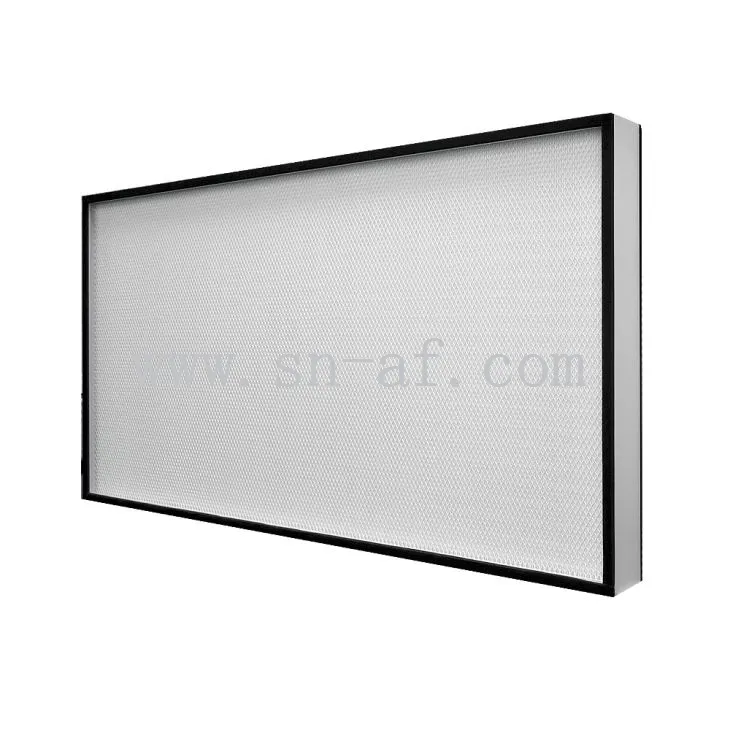

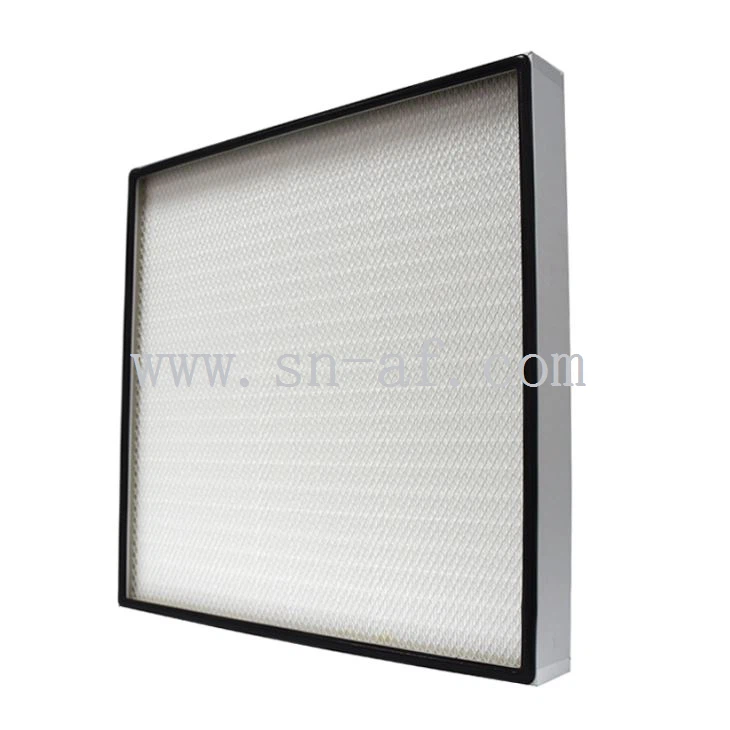

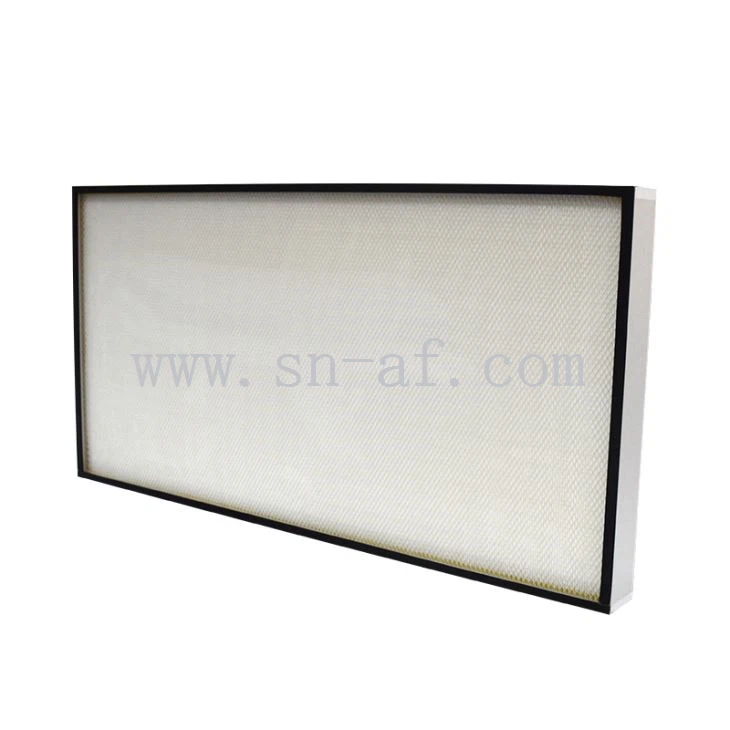

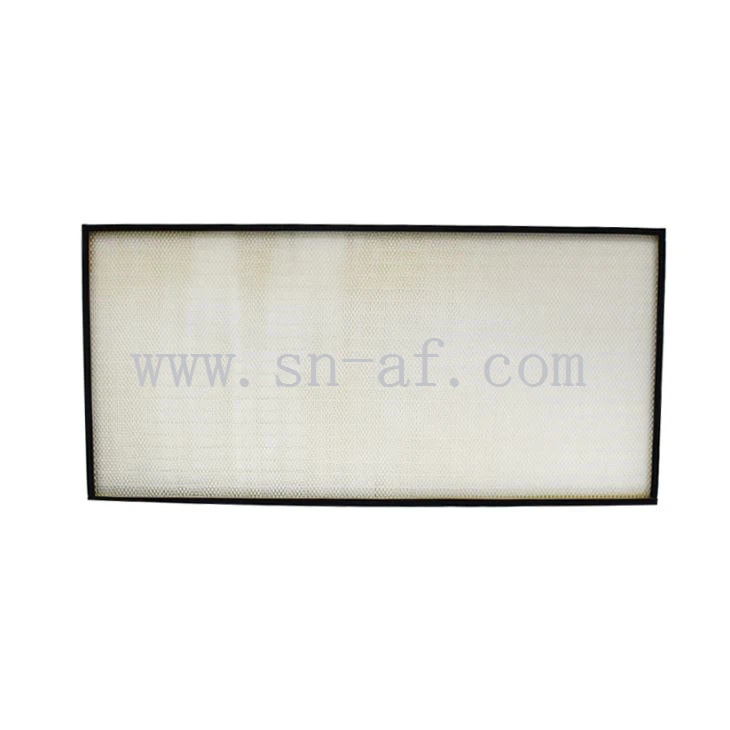

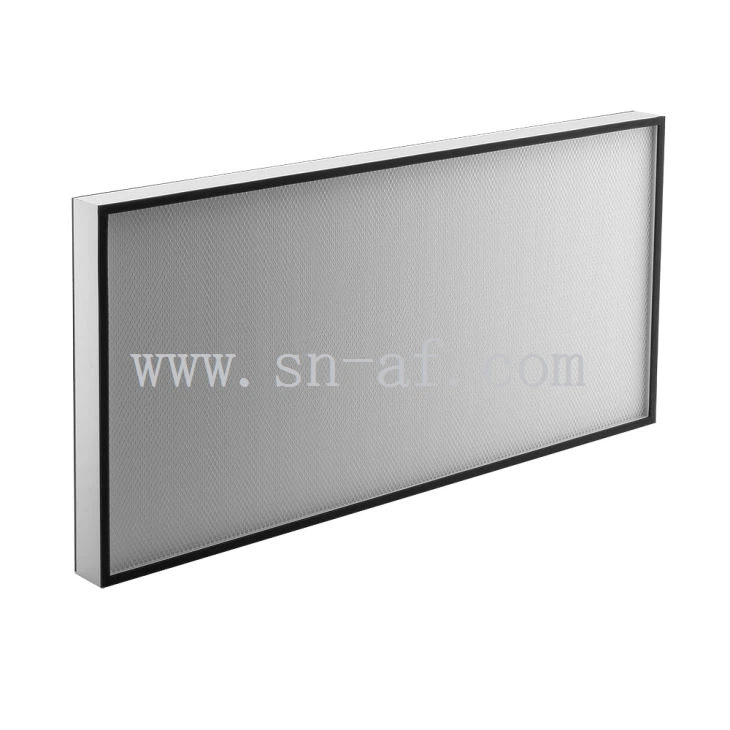

U15 Mini-Pleat ULPA Filter

Ultra low penetration air filters (ULPA) are mainly used for filters of 100 grades and above.

If the ULPA filters further subdivide the high efficiency filters, if the goal is to achieve the cleanliness level of 0.12µm, then the efficiency will be 0.12µm, this habit is called the ULPA filter. The filter media often use glass fiber and synthetic filter paper. The so-called HEPA Filter or Absolute Filter, its main material is glass fiber paper or chemical fiber paper (PP).

HEPA filter has no clapboard according to its structural form.

ULPA filters according to its structure are without separator filters.

Frame: Extruded anodized Aluminum profile

Separators: Hot melt

Media: Wet-laid Glass fiber

Sealant: Polyurethane

Gasket: EVAEPDM

Faceguard: Expanded sheet metal, white, on inlet and outlet side

Efficiency: ≥99.9995%at MPPS @0.3m/s ; ≥99.9997%at 0.12um @0.3m/s ; ≥99.9995%at MPPS @0.45m/s ; ≥99.9998%at 0.12um @0.45m/s

Temperature: ≤ 70℃

Humidity : ≤100%RH

Applications: Terminal air supply housing, FFU, clean equipments

Each filter is individually tested

Any size is available

U15 Mini-Pleat ULPA Filter
Number	Model	L	W	H	Area	Airflow.pressure drop				Efficiency
Number	Model	mm	mm	mm	m²	0.3m/s	Pa	0.45m/s	Pa	Efficiency
1	U1532032069	320	320	69	2.7	111	90	166	135	U15
2	U1548448469	484	484	69	6.1	253	90	379	135	U15
3	U1557057069	570	570	69	8.5	351	90	526	135	U15
4	U1563063069	630	630	69	10.4	429	90	643	135	U15
5	U1591561069	915	610	69	14.6	603	90	904	135	U15
6	U1596848469	968	484	69	12.2	506	90	759	135	U15
7	U15117057069	1170	570	69	17.4	720	90	1080	135	U15
8	U151170117069	1170	1170	69	35.7	1478	90	2218	135	U15
9	U15122061069	1220	610	69	19.4	804	90	1206	135	U15

10	U1532032080	320	320	80	3.1	111	80	166	120	U15
11	U1548448480	484	484	80	7.1	253	80	379	120	U15
12	U1557057080	570	570	80	9.8	351	80	526	120	U15
13	U1563063080	630	630	80	12.0	429	80	643	120	U15
14	U1591561080	915	610	80	16.9	603	80	904	120	U15
15	U1596848480	968	484	80	14.2	506	80	759	120	U15
16	U15117057080	1170	570	80	20.2	720	80	1080	120	U15
17	U151170117080	1170	1170	80	41.4	1478	80	2218	120	U15
18	U15122061080	1220	610	80	22.5	804	80	1206	120	U15

19	U1532032093	320	320	93	3.6	111	70	166	110	U15
20	U1548448493	484	484	93	8.2	253	70	379	110	U15
21	U1557057093	570	570	93	11.4	351	70	526	110	U15
22	U1563063093	630	630	93	14.0	429	70	643	110	U15
23	U1591561093	915	610	93	19.6	603	70	904	110	U15
24	U1596848493	968	484	93	16.5	506	70	759	110	U15
25	U15117057093	1170	570	93	23.4	720	70	1080	110	U15
26	U151170117093	1170	1170	93	48.1	1478	70	2218	110	U15
27	U15122061093	1220	610	93	26.2	804	70	1206	110	U15

28	U15320320110	320	320	110	4.3	111	55	166	80	U15
29	U15484484110	484	484	110	9.7	253	55	379	80	U15
30	U15570570110	570	570	110	13.5	351	55	526	80	U15
31	U15630630110	630	630	110	16.5	429	55	643	80	U15
32	U15915610110	915	610	110	23.2	603	55	904	80	U15
33	U15968484110	968	484	110	19.5	506	55	759	80	U15
34	U151170570110	1170	570	110	27.7	720	55	1080	80	U15
35	U1511701170110	1170	1170	110	56.9	1478	55	2218	80	U15
36	U151220610110	1220	610	110	30.9	804	55	1206	80	U15

Note: Pressure drop ±10%

FAQ

Q1: Can the product be customized?

A1: Yes, customized filters are available.

Q2: Are you a factory or trading company?

A2: We are Top 5 professional factory with rich experience in clean room engineering in China,and we have 15 patents for our products.

Q3: How long is the delivery time?

A3: It depends on the order quantity. Usually it takes about 7 to 15 working days after receiving your deposit.

Q4: How about the shipment?

A4: By sea, by air or by express, according to the Qty and your demand.
