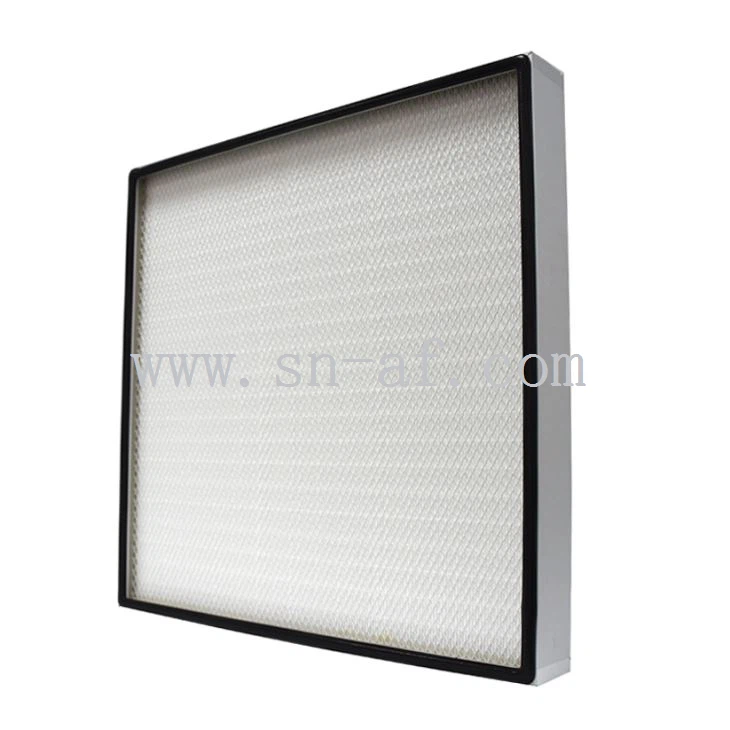

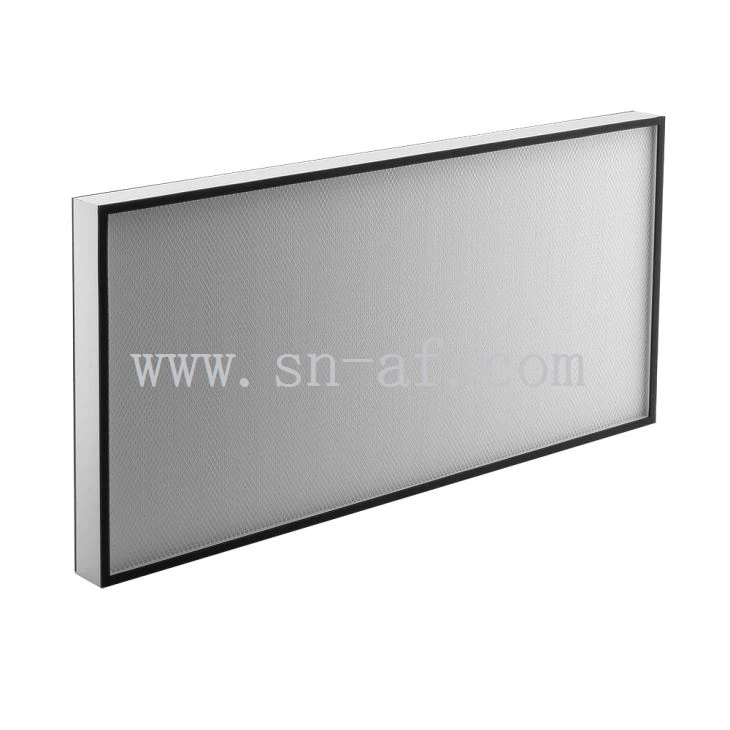

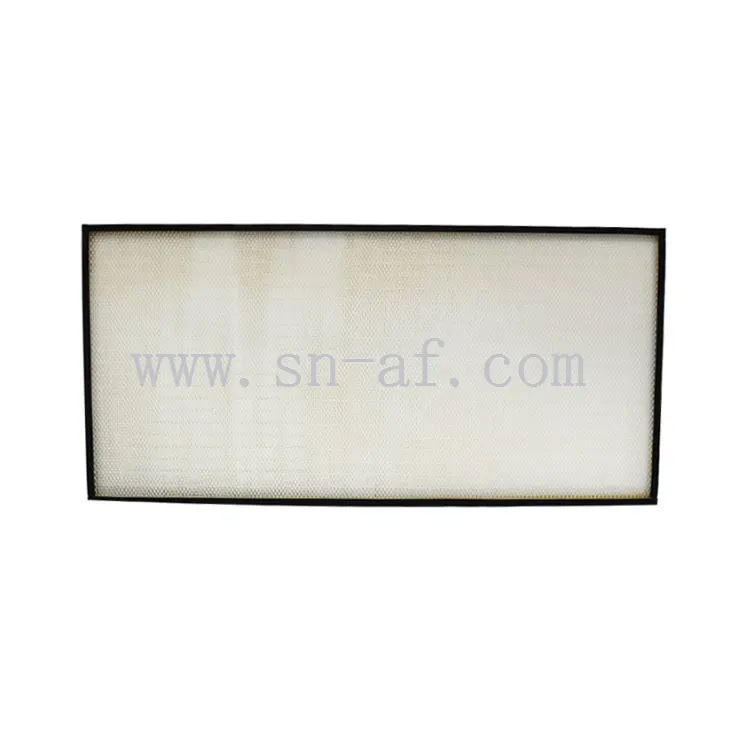

PTFE Filter

Frame: Extruded anodized Aluminum profile

Separators: Hot melt

Media: PTFE

Sealant: Polyurethane

Gasket: EVAEPDM

Faceguard: Expanded sheet metal, white, on inlet and outlet side

Efficiency:

≥99.995%at MPPS @0.45m/s H14

≥99.999%at 0.3um @0.45m/s H14

≥99.9995%at MPPS @0.45m/s U15

≥99.9998%at 0.12um @0.45m/s U15

≥99.99995%at MPPS @0.45m/s U16

≥99.99996%at 0.12um @0.45m/s U16

Each filter is individually tested

Temperature: ≤ 70℃

Humidity: ≤100%RH

Applications: Terminal air supply housing, FFU, clean equipments

Each filter is individually tested

Any size is available

PTFE Filter
Num	Model	L	W	H	Area	Airflow.pressure drop		Maximum pressure drop	Efficiency
Num	Model	mm	mm	mm	m²	0.45m/s	Pa	Pa	Efficiency
1	PH1457057069	570	570	69	8.4	526	50	500	H14
2	PH1461030569	600	305	69	4.8	296	50	500	H14
3	PH1461061069	610	610	69	9.7	603	50	500	H14
4	PH1491561069	915	610	69	14.5	904	50	500	H14
5	PH14117057069	1170	570	69	17.3	1080	50	500	H14
6	PH14117087069	1170	870	69	26.5	1649	50	500	H14
7	PH141170117069	1170	1170	69	35.6	2218	50	500	H14

8	PH1457057090	570	570	90	11.7	526	45	600	H14
9	PH1461030590	600	305	90	6.6	296	45	600	H14
10	PH1461061090	610	610	90	13.4	603	45	600	H14
11	PH1491561090	915	610	90	20.1	904	45	600	H14
12	PH14117057090	1170	570	90	24.0	1080	45	600	H14
13	PH14117087090	1170	870	90	36.6	1649	45	600	H14
14	PH141170117090	1170	1170	90	49.3	2218	45	600	H14

15	PU1557057069	570	570	69	8.4	526	100	500	U15
16	PU1561030569	600	305	69	4.8	296	100	500	U15
17	PU1561061069	610	610	69	9.7	603	100	500	U15
18	PU1591561069	915	610	69	14.5	904	100	500	U15
19	PU15117057069	1170	570	69	17.3	1080	100	500	U15
20	PU15117087069	1170	870	69	26.5	1649	100	500	U15
21	PU151170117069	1170	1170	69	35.6	2218	100	500	U15

22	PU1557057090	570	570	90	11.7	526	85	600	U15
23	PU1561030590	600	305	90	6.6	296	85	600	U15
24	PU1561061090	610	610	90	13.4	603	85	600	U15
25	PU1591561090	915	610	90	20.1	904	85	600	U15
26	PU15117057090	1170	570	90	24.0	1080	85	600	U15
27	PU15117087090	1170	870	90	36.6	1649	85	600	U15
28	PU151170117090	1170	1170	90	49.3	2218	85	600	U15

29	PU1657057069	570	570	69	8.4	526	115	500	U16
30	PU1661030569	600	305	69	4.8	296	115	500	U16
31	PU1661061069	610	610	69	9.7	603	115	500	U16
32	PU1691561069	915	610	69	14.5	904	115	500	U16
33	PU16117057069	1170	570	69	17.3	1080	115	500	U16
34	PU16117087069	1170	870	69	26.5	1649	115	500	U16
35	PU161170117069	1170	1170	69	35.6	2218	115	500	U16

36	PU1657057090	570	570	90	11.7	526	100	600	U16
37	PU1661030590	600	305	90	6.6	296	100	600	U16
38	PU1661061090	610	610	90	13.4	603	100	600	U16
39	PU1691561090	915	610	90	20.1	904	100	600	U16
40	PU16117057090	1170	570	90	24.0	1080	100	600	U16
41	PU16117087090	1170	870	90	36.6	1649	100	600	U16
42	PU161170117090	1170	1170	90	49.3	2218	100	600	U16

Note: Pressure drop ±10%

FAQ

Q1: Can the product be customized?

A1: Yes, customized filters are available.

Q2: Are you a factory or trading company?

A2: We are Top 5 professional factory with rich experience in clean room engineering in China,and we have 15 patents for our products.

Q3: How long is the delivery time?

A3: It depends on the order quantity. Usually it takes about 7 to 15 working days after receiving your deposit.

Q4: How about the shipment?

A4: By sea, by air or by express, according to the Qty and your demand.
