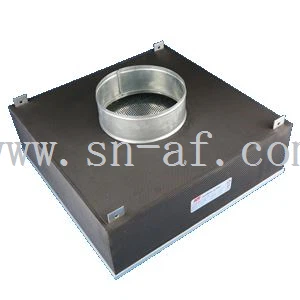

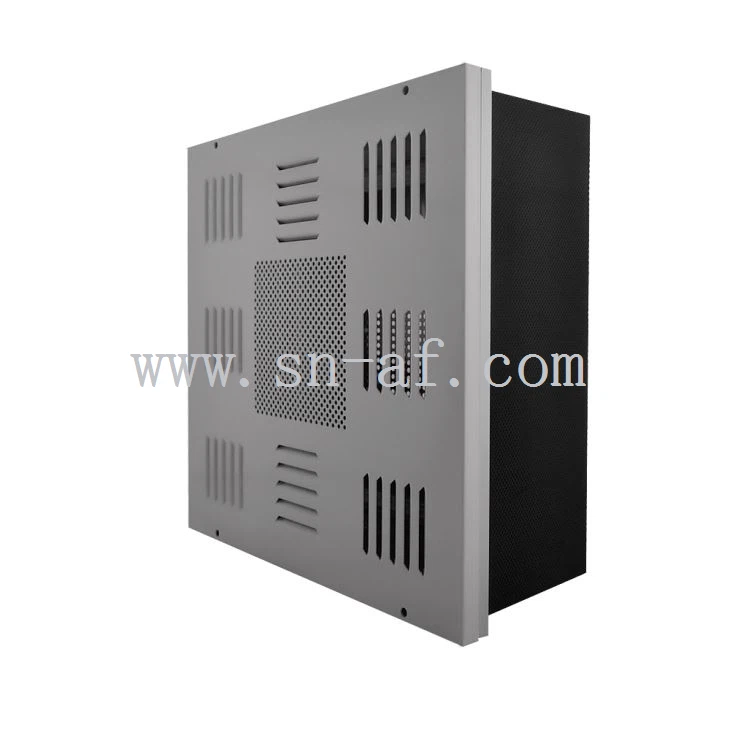

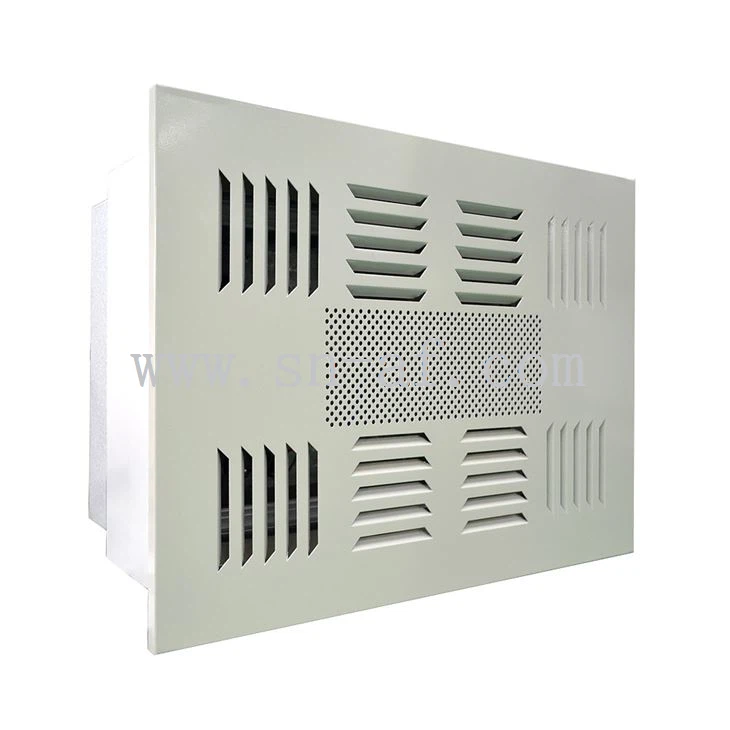

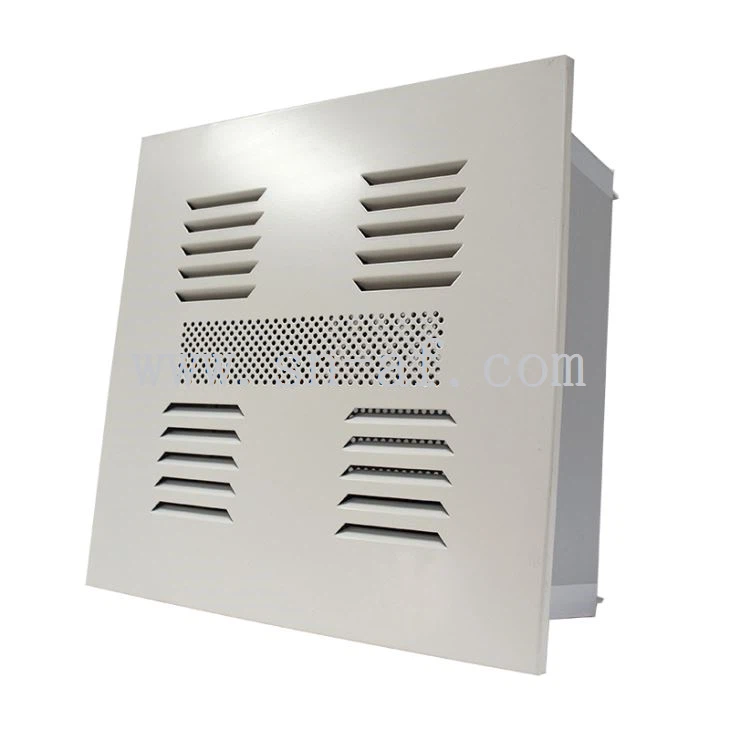

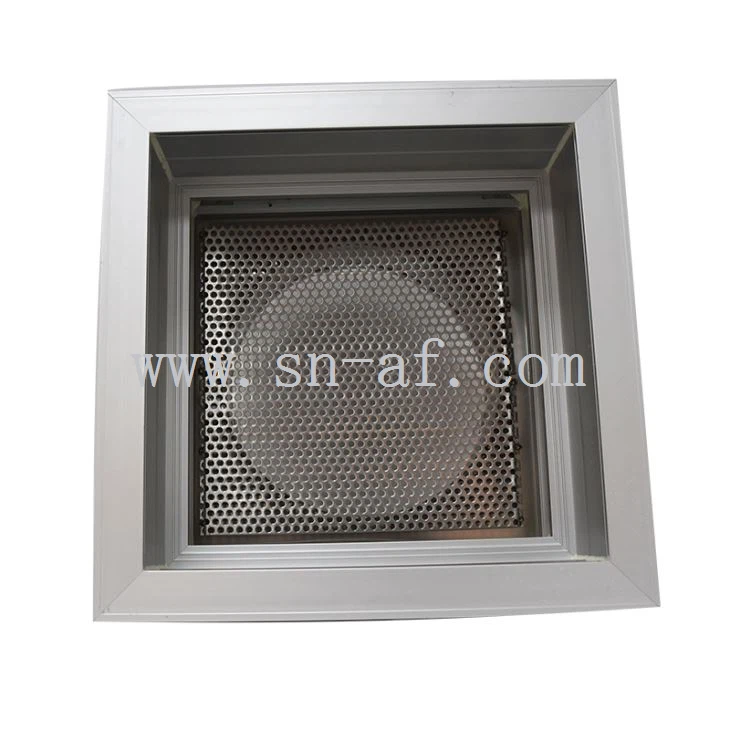

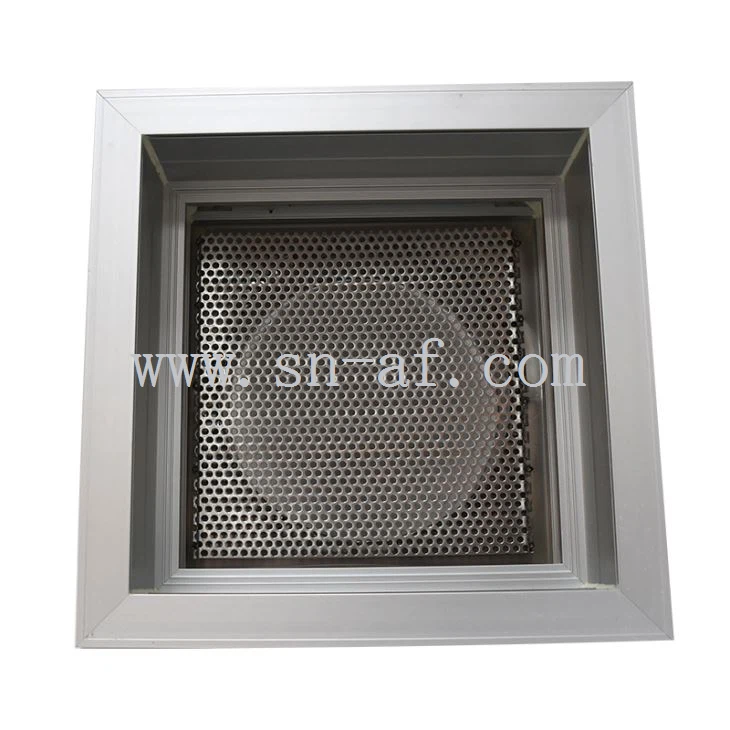

Disposable Diffusers

It is very popular in many applications, reliable performance, low price, and very easily to install.

Applications:

Suitable for operating room, laboratory, electronics, pharmaceutical industry, hospital, and the occasions require ed the high cleanliness terminal filtration.

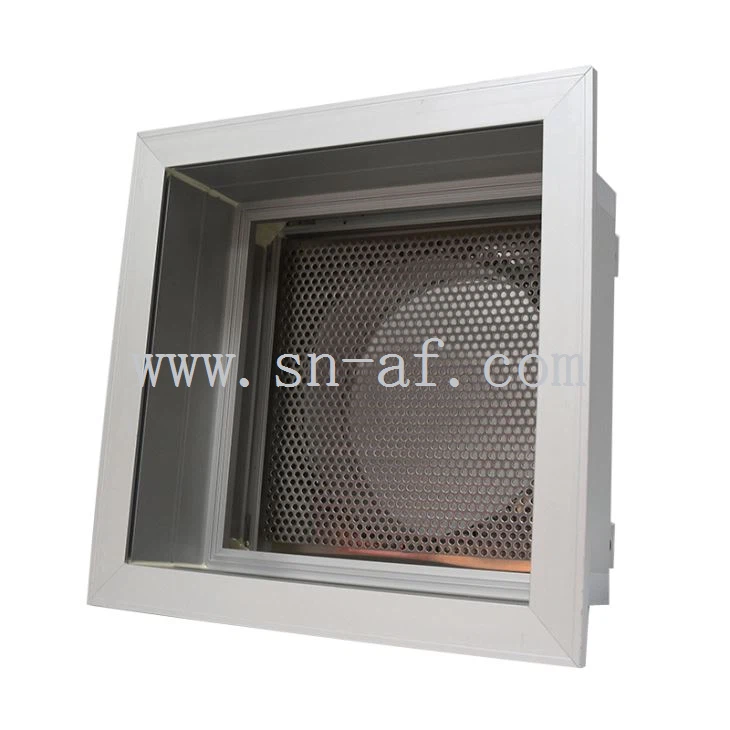

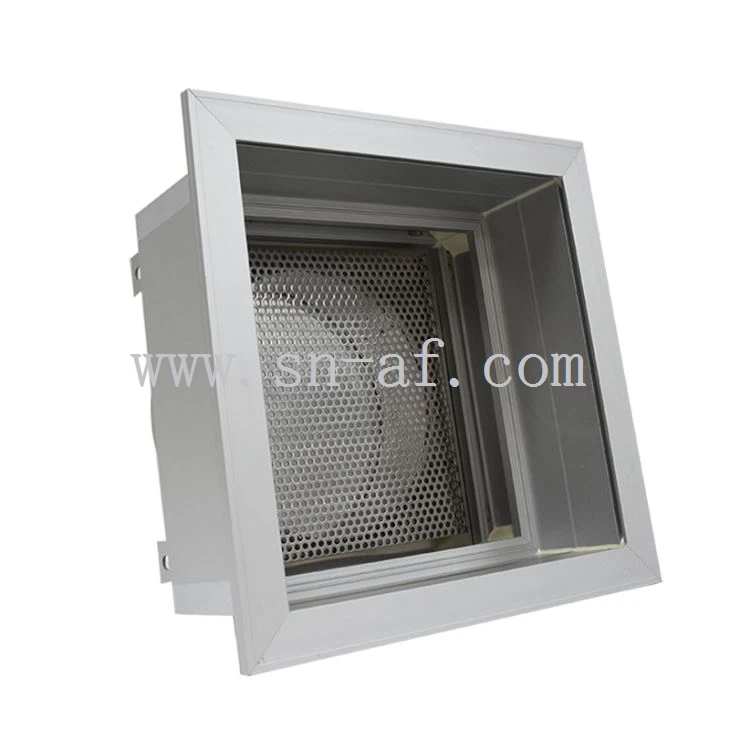

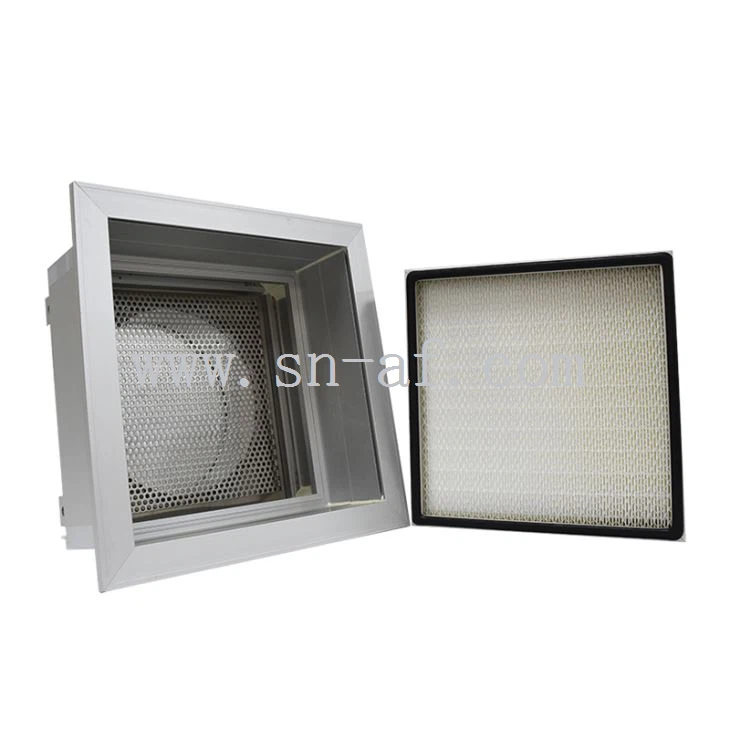

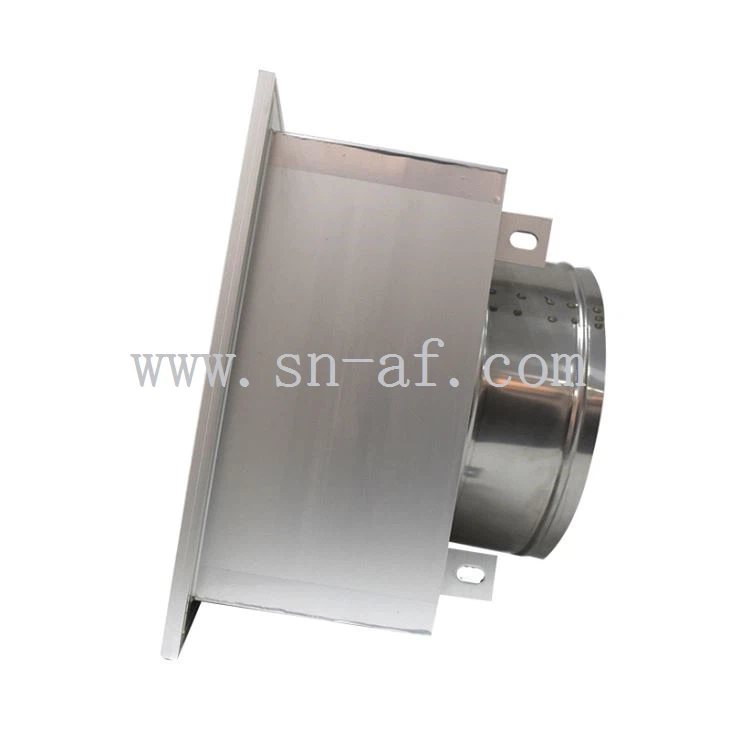

Roomside Replaceable HEPA Box
Num	Model	L	W	H	Filter dimention	Air speed	Airflow.pressure drop H13/H14	Airlow	Inlet size	advised celling hole size		Insulation
		mm	mm	mm	mmmmmm	m/s	Pa	m³/h	φmm	mm	mm
1	S3203206935	355	355	280	32032069	0.45	115 / 140	166	250	365	365	15mm
2	S4844846935	519	519	280	48448469	0.45	115 / 140	379	250	529	529	15mm
3	S5705706935	605	605	280	57057069	0.45	115 / 140	526	300	615	615	15mm
4	S6306306935	665	665	280	63063069	0.45	115 / 140	643	300	675	675	15mm
5	S9156106935	950	645	280	91561069	0.45	115 / 140	904	300	960	655	15mm
6	S9684846935	1003	519	280	96848469	0.45	115 / 140	759	300	1013	529	15mm
7	S11705706935	1205	605	280	117057069	0.45	115 / 140	1080	300	1215	615	15mm
8	S117011706935	1205	1205	280	1170117069	0.45	115 / 140	2218	300	1215	1215	15mm
Non-standard size can be customized, the details according to the Tech Department.

9	S3203208055	375	375	280	32032080	0.75	160 / 195	276	250	350	350	15mm
10	S4844848055	539	539	280	48448480	0.75	160 / 195	632	300	514	514	15mm
11	S5705708055	625	625	280	57057080	0.75	160 / 195	877	300	600	600	15mm
12	S6306308055	685	685	280	63063080	0.75	160 / 195	1072	300	660	660	15mm
13	S9156108055	970	665	280	91561080	0.75	160 / 195	1507	350	945	640	15mm
14	S9684848055	1023	539	280	96848480	0.75	160 / 195	1265	300	998	514	15mm
15	S11705708055	1225	625	280	117057080	0.75	160 / 195	1801	350	1200	600	15mm
16	S117011708055	1225	1225	280	1170117080	0.75	160 / 195	3696	350	1200	1200	15mm
Non-standard size can be customized, the details according to the Tech Department.

17	S3203209375	395	395	280	32032093	1.00	200 / 220	369	250	360	360	15mm
18	S4844849375	559	559	280	48448493	1.00	200 / 220	843	300	524	524	15mm
19	S5705709375	645	645	280	57057093	1.00	200 / 220	1170	300	610	610	15mm
20	S6306309375	705	705	280	63063093	1.00	200 / 220	1429	300	670	670	15mm
21	S9156109375	990	685	280	91561093	1.00	200 / 220	2009	350	955	650	15mm
22	S9684849375	1043	559	280	96848493	1.00	200 / 220	1687	350	1008	524	15mm
23	S11705709375	1245	645	280	117057093	1.00	200 / 220	2401	350	1210	610	15mm
24	S117011709375	1245	1245	280	1170117093	1.00	200 / 220	4928	350	1210	1210	15mm
Non-standard size can be customized, the details according to the Tech Department.

Disposable Diffusers
25	S5705706935	600	600	250	57057069	0.90	200 / 220	1053	300	610	610	15mm
26	S11705706935	1200	600	250	117057069	0.90	200 / 220	2161	300	1210	610	15mm
Non-standard size can be customized, the details according to the Tech Department.
