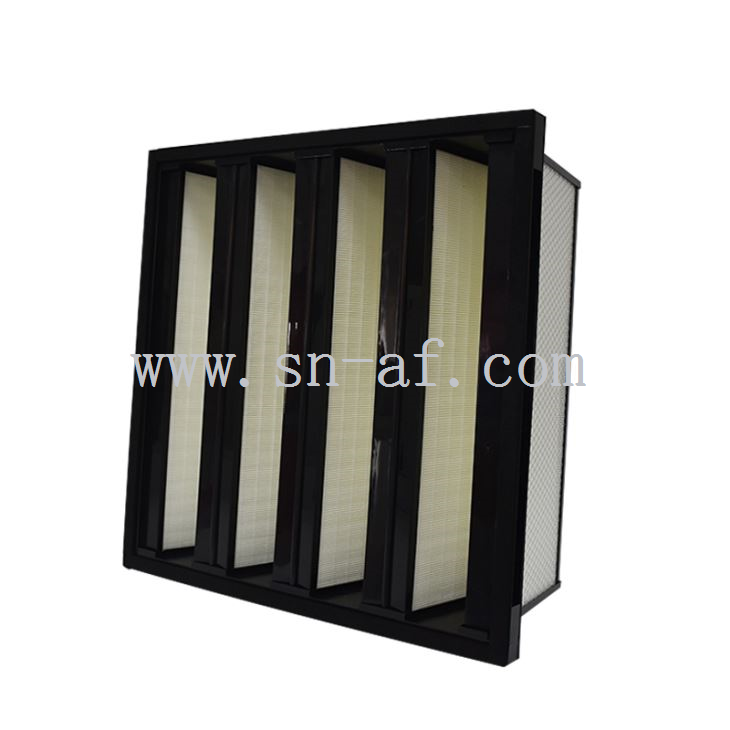

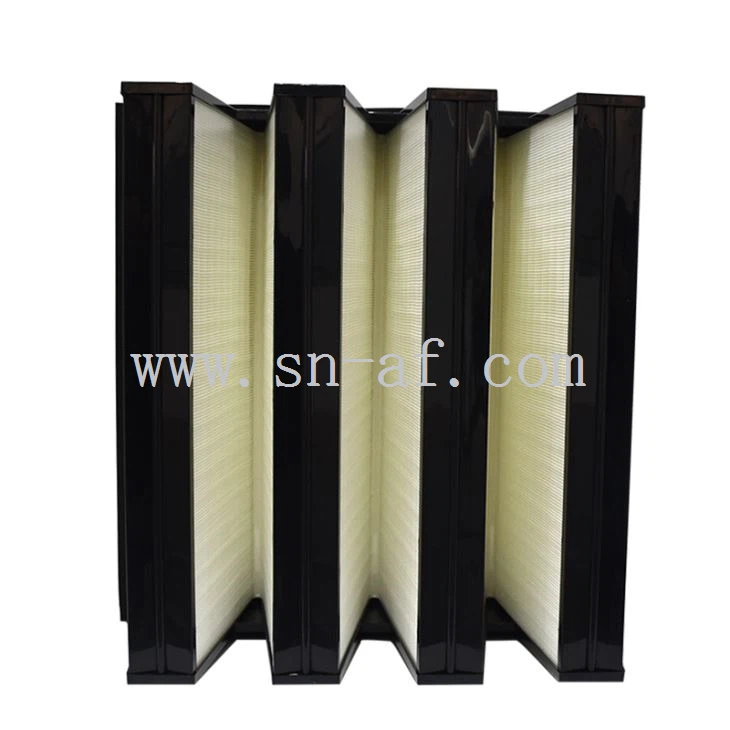

Mini Pleat V Bank HEPA Air Filter
Application:
HEPA filter of clean rooms, commercial and industrial ventilation and air conditioning systems.
Ventilation and air conditioning system in high humidity environment.
Variable air volume ventilation and air conditioning system.
Widely used in clean rooms and other areas with strict requirements of air cleanliness.
Frame: ABS or Galvanized sheet metal
Separators: Hot melt
Media: Wet-laid Glass fiber
Sealant: Polyurethane
Temperature: ≤70℃
Humidity: ≤100%RH
Efficiency:
F6 (EN779):60-65%ASHRAE52/76
F7 (EN779):90%ASHRAE52/76
F8 (EN779):95%ASHRAE52/76
F9 (EN779):98%ASHRAE52/76
H10 (EN 1822) ≥85atMPPS
H11 (EN 1822) ≥95atMPPS
H13 (EN 1822) ≥99.95atMPPS
H14 (EN 1822) ≥99.995atMPPS
Recommended final pressure drop: ≤600Pa
Applications: Clean room recirculation and MUA applications for AMC removal
| Mini Pleat V Bank HEPA Air Filter | ||||||||||
| Num | Model | L | W | H | Area | Airflow.pressure drop | Efficiency | |||
| mm | mm | mm | m2 | m3/h | Pa | m3/h | Pa | |||
| 1 | F6592592292 | 592 | 592 | 292 | 18.4 | 1700 | 40 | 3400 | 70 | F6 |
| 2 | F6592490292 | 592 | 490 | 292 | 15.2 | 1300 | 40 | 2700 | 70 | F6 |
| 3 | F6592287292 | 592 | 287 | 292 | 8.9 | 850 | 40 | 1700 | 70 | F6 |
| 4 | F7592592292 | 592 | 592 | 292 | 19.0 | 1700 | 50 | 3400 | 90 | F7 |
| 5 | F7592490292 | 592 | 490 | 292 | 15.0 | 1300 | 50 | 2700 | 90 | F7 |
| 6 | F7592287292 | 592 | 287 | 292 | 9.0 | 850 | 50 | 1700 | 90 | F7 |
| 7 | F8592592292 | 592 | 592 | 292 | 19.0 | 1700 | 60 | 3400 | 110 | F8 |
| 8 | F8592490292 | 592 | 490 | 292 | 15.0 | 1300 | 60 | 2700 | 110 | F8 |
| 9 | F8592287292 | 592 | 287 | 292 | 9.0 | 850 | 60 | 1700 | 110 | F8 |
| 10 | F9592592292 | 592 | 592 | 292 | 19.0 | 1700 | 80 | 3400 | 140 | F9 |
| 11 | F9592490292 | 592 | 490 | 292 | 15.0 | 1300 | 80 | 2700 | 140 | F9 |
| 12 | F9592287292 | 592 | 287 | 292 | 9.0 | 850 | 80 | 1700 | 140 | F9 |
| 13 | H10592592292 | 592 | 592 | 292 | 19.0 | 1700 | 150 | 3400 | 230 | H10 |
| 14 | H10592490292 | 592 | 490 | 292 | 15.0 | 1300 | 150 | 2700 | 230 | H10 |
| 15 | H10592287292 | 592 | 287 | 292 | 9.0 | 850 | 150 | 1700 | 230 | H10 |
| 16 | H11592592292 | 592 | 592 | 292 | 19.0 | 1700 | 170 | 3400 | 250 | H11 |
| 17 | H11592490292 | 592 | 490 | 292 | 15.0 | 1300 | 170 | 2700 | 250 | H11 |
| 18 | H11592287292 | 592 | 287 | 292 | 9.0 | 850 | 170 | 1700 | 250 | H11 |
| 16 | H13592592292 | 592 | 592 | 292 | 19.0 | 1700 | 190 | 3400 | 280 | H13 |
| 17 | H13592490292 | 592 | 490 | 292 | 15.0 | 1300 | 190 | 2700 | 280 | H13 |
| 18 | H13592287292 | 592 | 287 | 292 | 9.0 | 850 | 190 | 1700 | 280 | H13 |
| 16 | H14592592292 | 592 | 592 | 292 | 19.0 | 1700 | 210 | 3400 | 310 | H14 |
| 17 | H14592490292 | 592 | 490 | 292 | 15.0 | 1300 | 210 | 2700 | 310 | H14 |
| 18 | H14592287292 | 592 | 287 | 292 | 9.0 | 850 | 210 | 1700 | 310 | H14 |
If the single-flange galvanized iron frame to make v-type filter, the same parameters.
Note: Pressure drop ±10%
| FAQ |
Q1: Can the product be customized?
A1: Yes, customized filters are available.
Q2: Are you a factory or trading company?
A2: We are Top 5 professional factory with rich experience in clean room engineering in China,and we have 15 patents for our products.
Q3: How long is the delivery time?
A3: It depends on the order quantity. Usually it takes about 7 to 15 working days after receiving your deposit.
Q4: How about the shipment?
A4: By sea, by air or by express, according to the Qty and your demand.
