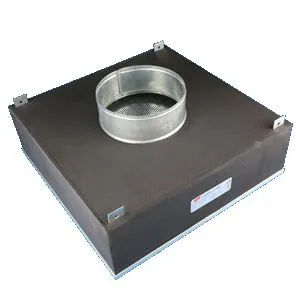

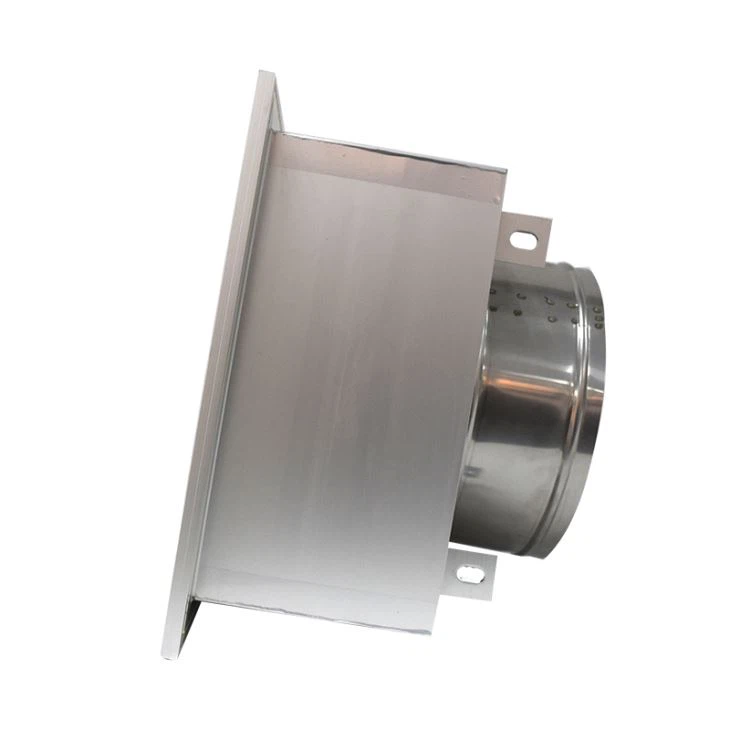

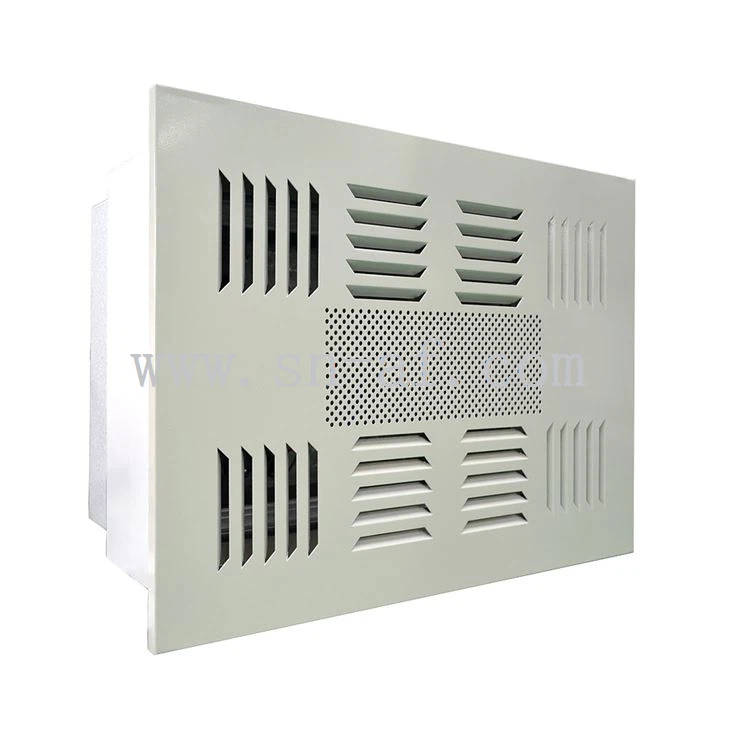

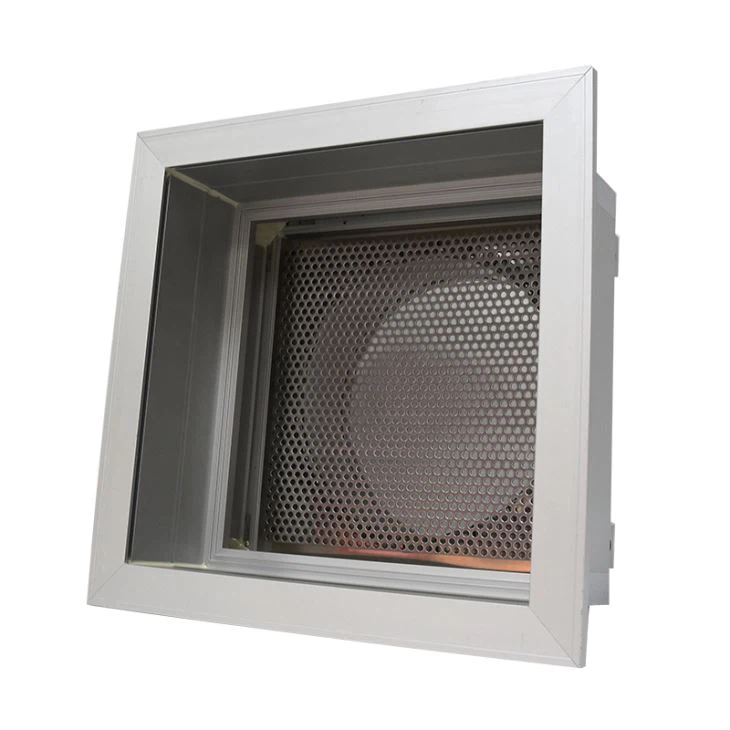

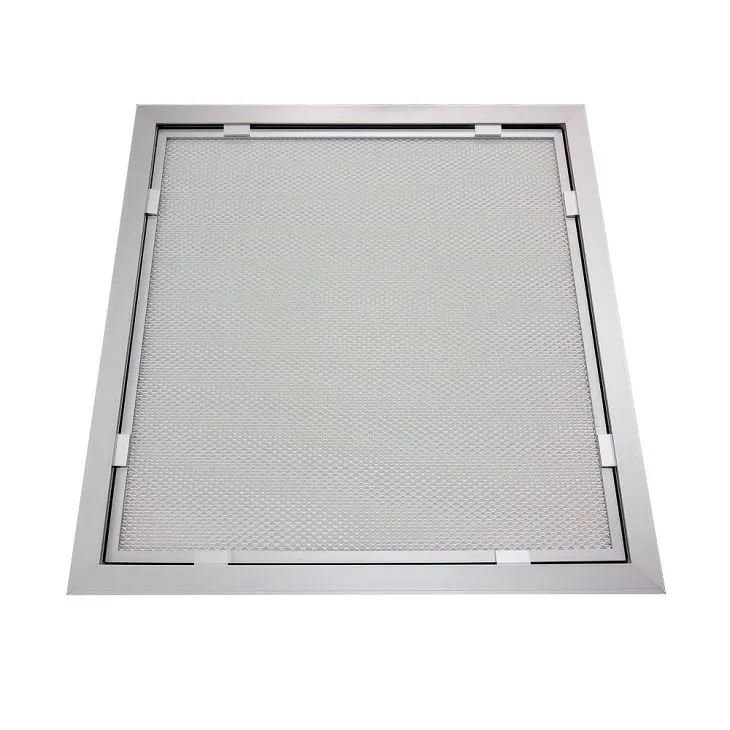

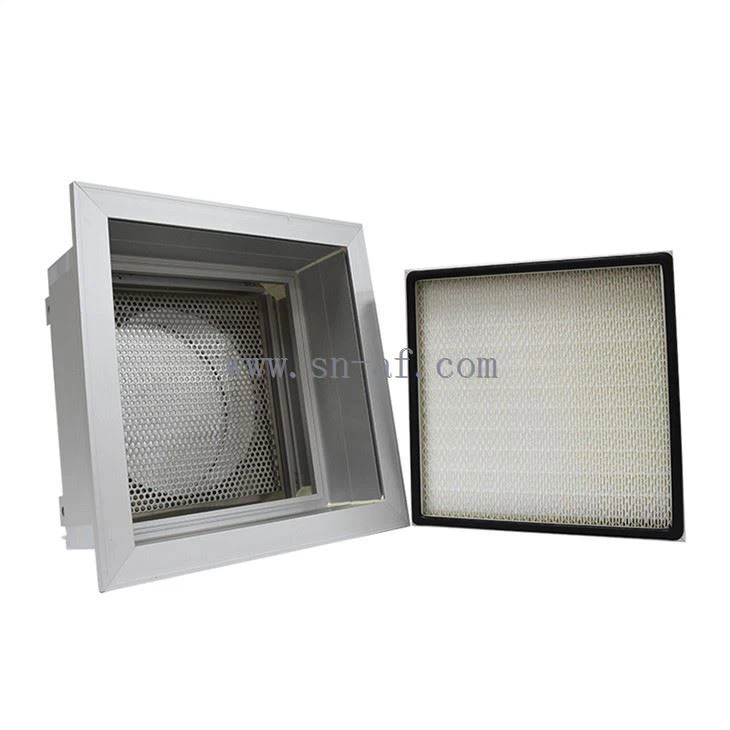

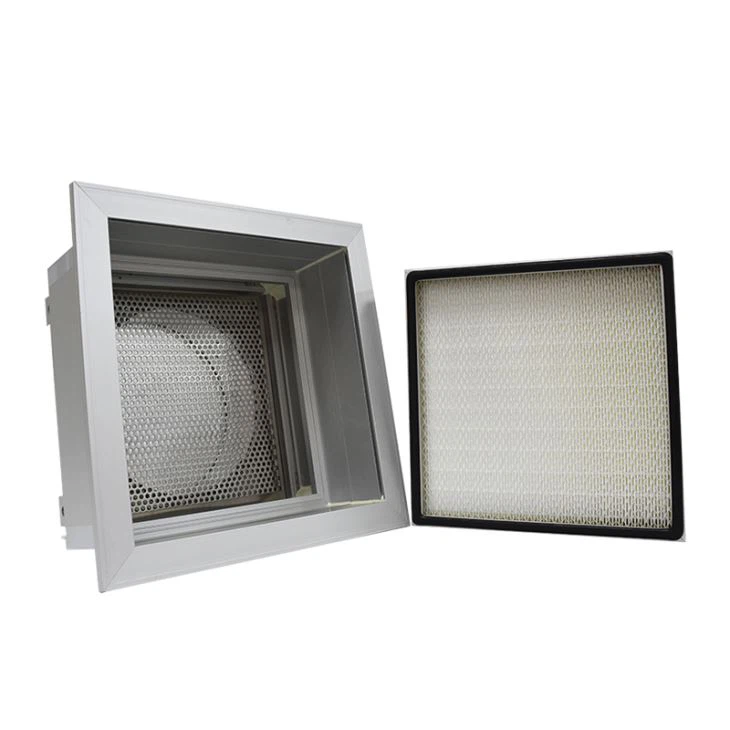

Room side Replaceable HEPA Box

Features:

● Trapping 99.99% or higher of 0.3μm particles

● Anodized aluminum alloy extrusions frame with externally applied fireproof heat-insulator

● Adopting ultra-fine fiber glass paper with low resistance and large air volume, the built-in mini pleat filter occupies small space

● Generous appearance, compact structure, easy installation and maintenance

● Each filter in HEPA box is through rigorous testing

Applications:

Suitable as terminal filtration of air supply system in clean workshops and clean rooms required the high cleanliness. Availably to ensure air flow speed and prevent swirl

Roomside Replaceable HEPA Box
Num	Model	L	W	H	Filter dimention	Air speed	Airflow.pressure drop H13/H14	Airlow	Inlet size	advised celling hole size		Insulation
Num	Model	mm	mm	mm	mmmmmm	m/s	Pa	m³/h	φmm	mm	mm	Insulation
1	S3203206935	355	355	280	32032069	0.45	115 / 140	166	250	365	365	15mm
2	S4844846935	519	519	280	48448469	0.45	115 / 140	379	250	529	529	15mm
3	S5705706935	605	605	280	57057069	0.45	115 / 140	526	300	615	615	15mm
4	S6306306935	665	665	280	63063069	0.45	115 / 140	643	300	675	675	15mm
5	S9156106935	950	645	280	91561069	0.45	115 / 140	904	300	960	655	15mm
6	S9684846935	1003	519	280	96848469	0.45	115 / 140	759	300	1013	529	15mm
7	S11705706935	1205	605	280	117057069	0.45	115 / 140	1080	300	1215	615	15mm
8	S117011706935	1205	1205	280	1170117069	0.45	115 / 140	2218	300	1215	1215	15mm
Non-standard size can be customized, the details according to the Tech Department.

9	S3203208055	375	375	280	32032080	0.75	160 / 195	276	250	350	350	15mm
10	S4844848055	539	539	280	48448480	0.75	160 / 195	632	300	514	514	15mm
11	S5705708055	625	625	280	57057080	0.75	160 / 195	877	300	600	600	15mm
12	S6306308055	685	685	280	63063080	0.75	160 / 195	1072	300	660	660	15mm
13	S9156108055	970	665	280	91561080	0.75	160 / 195	1507	350	945	640	15mm
14	S9684848055	1023	539	280	96848480	0.75	160 / 195	1265	300	998	514	15mm
15	S11705708055	1225	625	280	117057080	0.75	160 / 195	1801	350	1200	600	15mm
16	S117011708055	1225	1225	280	1170117080	0.75	160 / 195	3696	350	1200	1200	15mm
Non-standard size can be customized, the details according to the Tech Department.

17	S3203209375	395	395	280	32032093	1.00	200 / 220	369	250	360	360	15mm
18	S4844849375	559	559	280	48448493	1.00	200 / 220	843	300	524	524	15mm
19	S5705709375	645	645	280	57057093	1.00	200 / 220	1170	300	610	610	15mm
20	S6306309375	705	705	280	63063093	1.00	200 / 220	1429	300	670	670	15mm
21	S9156109375	990	685	280	91561093	1.00	200 / 220	2009	350	955	650	15mm
22	S9684849375	1043	559	280	96848493	1.00	200 / 220	1687	350	1008	524	15mm
23	S11705709375	1245	645	280	117057093	1.00	200 / 220	2401	350	1210	610	15mm
24	S117011709375	1245	1245	280	1170117093	1.00	200 / 220	4928	350	1210	1210	15mm
Non-standard size can be customized, the details according to the Tech Department.

Roomside Disposable HEPA Box
25	S5705706935	600	600	250	57057069	0.90	200 / 220	1053	300	610	610	15mm
26	S11705706935	1200	600	250	117057069	0.90	200 / 220	2161	300	1210	610	15mm
Non-standard size can be customized, the details according to the Tech Department.
