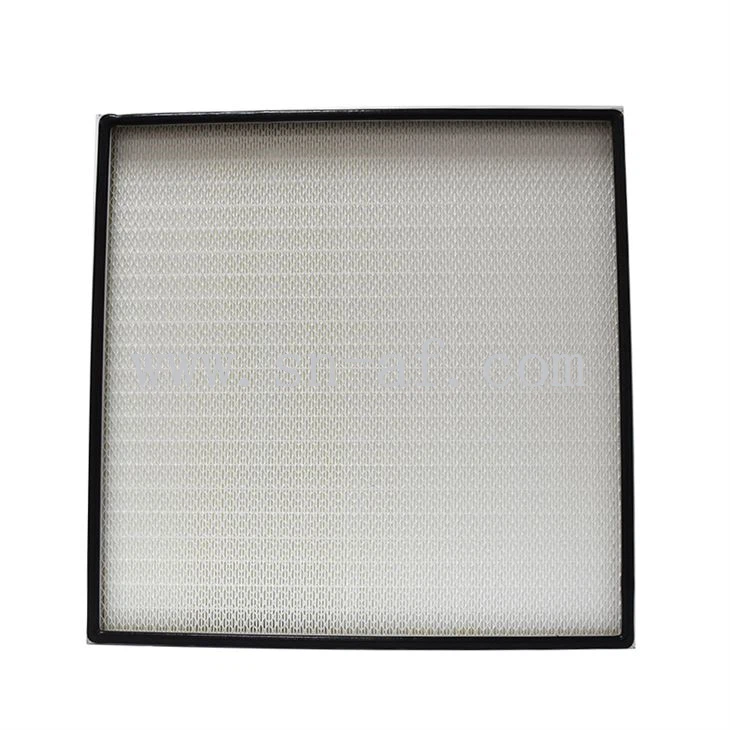

H11H12 Mini-Pleat Filter

Frame: Extruded anodized Aluminum profile

Separators: Hot melt

Media: Wet-laid Glass fiber

Sealant: Polyurethane

Gasket: EVAEPDM

Faceguard: Expanded sheet metal, white, on inlet and outlet side

Efficiency: H11(EN1822) ≥95%@MPPS; ≥99%@0.3um

Temperature: ≤70℃

Humidity: ≤100%RH

Applications: Terminal air supply housing in clean room of low cleanliness, eg.CL-300K/100K

Each filter is individually tested

Any size is available

H11H12 Mini-Pleat Filter
Number	Model	L	W	H	Area	Airflow.pressure drop						Efficiency
Number	Model	mm	mm	mm	m²	0.45m/s	Pa	0.75m/s	Pa	0.9m/s	Pa	Efficiency
1	H1132032069	320	320	69	2.7	166	60-70	276	105	332	130	H11
2	H1148448469	484	484	69	6.1	379	60-70	632	105	759	130	H11
3	H1157057069	570	570	69	8.5	526	60-70	877	105	1053	130	H11
4	H1163063069	630	630	69	10.4	643	60-70	1072	105	1286	130	H11
5	H1191561069	915	610	69	14.6	904	60-70	1507	105	1808	130	H11
6	H1196848469	968	484	69	12.2	759	60-70	1265	105	1518	130	H11
7	H11117057069	1170	570	69	17.4	1080	60-70	1801	105	2161	130	H11
8	H111170117069	1170	1170	69	35.7	2218	60-70	3696	105	4435	130	H11
9	H11122061069	1220	610	69	19.4	1206	60-70	2009	105	2411	130	H11

10	H1132032093	320	320	93	3.6	166	45	276	80	332	110	H11
11	H1148448493	484	484	93	8.2	379	45	632	80	759	110	H11
12	H1157057093	570	570	93	11.4	526	45	877	80	1053	110	H11
13	H1163063093	630	630	93	14.0	643	45	1072	80	1286	110	H11
14	H1191561093	915	610	93	19.6	904	45	1507	80	1808	110	H11
15	H1196848493	968	484	93	16.5	759	45	1265	80	1518	110	H11
16	H11117057093	1170	570	93	23.4	1080	45	1801	80	2161	110	H11
17	H111170117093	1170	1170	93	48.1	2218	45	3696	80	4435	110	H11
18	H11122061093	1220	610	93	26.2	1206	45	2009	80	2411	110	H11

Note: Pressure drop ±10%

Remarks: When the price and air volume of H12 and H11 are the same,the resistance of H12 is about 10% larger than that of H11. If H12 is used, for example, the model h1132032069 changes to h1232032069, and so on.

Our Packing

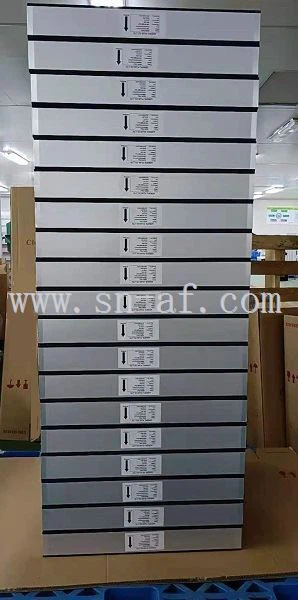

H13 610x610x70-2-2

FAQ

Q1: Can the product be customized?

A1: Yes, customized filters are available.

Q2: Are you a factory or trading company?

A2: We are Top 5 professional factory with rich experience in clean room engineering in China,and we have 15 patents for our products.

Q3: How long is the delivery time?

A3: It depends on the order quantity. Usually it takes about 7 to 15 working days after receiving your deposit.

Q4: How about the shipment?

A4: By sea, by air or by express, according to the Qty and your demand.
