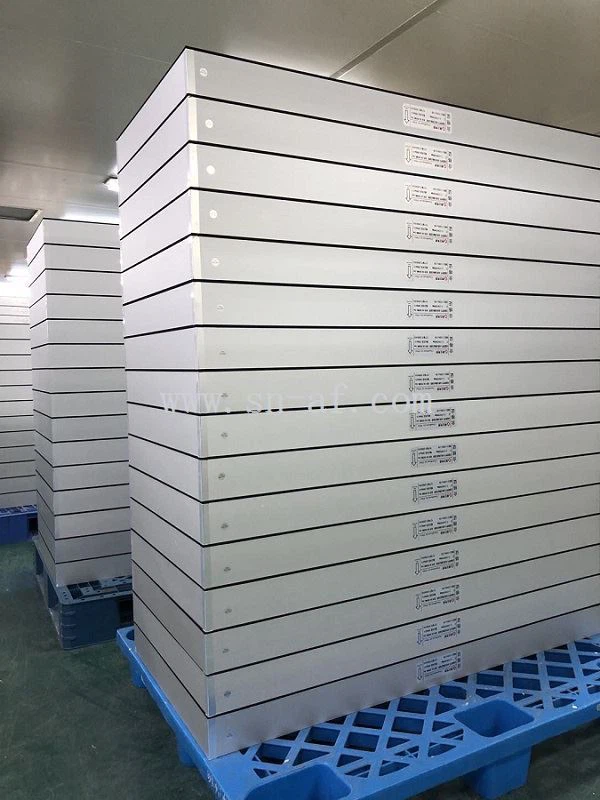

Cleanroom Aluminum Frame HEPA FILTER

The Cleanroom HEPA Filter with aluminum frame is widely used in the filtering of the terminal air supply system which requires high air cleanliness in all walks of life or industrial clean engineering, such as electronics, semiconductor, precision machinery, biological pharmacy, hospital, food, etc, and air conditioning systems with special requirements.

Frame: Extruded anodized Aluminum profile

Separators: Hot melt

Media: Wet-laid Glass fiber

Sealant: Polyurethane

Gasket: EVAEPDM

Face guard: Expanded sheet metal, white, on inlet and outlet side

Efficiency: ≥99.95%at MPPS @0.45m/s ; ≥99.995%at 0.3um @0.45m/s

Temperature: ≤ 70℃

Humidity: ≤100%RH

Applications: Terminal air supply housing, FFU, clean equipments

Each filter is individually tested

Any size is available

Cleanroom Aluminum Frame HEPA FILTER
Number	Model	L	W	H	Area	Airflow.pressure drop						Efficiency
Number	Model	mm	mm	mm	m²	0.45m/s	Pa	0.75m/s	Pa	0.9m/s	Pa	Efficiency
1	H1332032069	320	320	69	2.7	166	105	276	175	332	215	H13
2	H1348448469	484	484	69	6.1	379	105	632	175	759	215	H13
3	H1357057069	570	570	69	8.5	526	105	877	175	1053	215	H13
4	H1363063069	630	630	69	10.4	643	105	1072	175	1286	215	H13
5	H1391561069	915	610	69	14.6	904	105	1507	175	1808	215	H13
6	H1396848469	968	484	69	12.2	759	105	1265	175	1518	215	H13
7	H13117057069	1170	570	69	17.4	1080	105	1801	175	2161	215	H13
8	H131170117069	1170	1170	69	35.7	2218	105	3696	175	4435	215	H13
9	H13122061069	1220	610	69	19.4	1206	105	2009	175	2411	215	H13

10	H1332032080	320	320	80	3.1	166	90	276	150	332	190	H13
11	H1348448480	484	484	80	7.1	379	90	632	150	759	190	H13
12	H1357057080	570	570	80	9.8	526	90	877	150	1053	190	H13
13	H1363063080	630	630	80	12.0	643	90	1072	150	1286	190	H13
14	H1391561080	915	610	80	16.9	904	90	1507	150	1808	190	H13
15	H1396848480	968	484	80	14.2	759	90	1265	150	1518	190	H13
16	H13117057080	1170	570	80	20.2	1080	90	1801	150	2161	190	H13
17	H131170117080	1170	1170	80	41.4	2218	90	3696	150	4435	190	H13
18	H13122061080	1220	610	80	22.5	1206	90	2009	150	2411	190	H13

19	H1332032093	320	320	93	3.6	166	80	276	125	332	150	H13
20	H1348448493	484	484	93	8.2	379	80	632	125	759	150	H13
21	H1357057093	570	570	93	11.4	526	80	877	125	1053	150	H13
22	H1363063093	630	630	93	14.0	643	80	1072	125	1286	150	H13
23	H1391561093	915	610	93	19.6	904	80	1507	125	1808	150	H13
24	H1396848493	968	484	93	16.5	759	80	1265	125	1518	150	H13
25	H13117057093	1170	570	93	23.4	1080	80	1801	125	2161	150	H13
26	H131170117093	1170	1170	93	48.1	2218	80	3696	125	4435	150	H13
27	H13122061093	1220	610	93	26.2	1206	80	2009	125	2411	150	H13

28	H13320320110	320	320	110	4.3	166	65	276	95	332	105	H13
29	H13484484110	484	484	110	9.7	379	65	632	95	759	105	H13
30	H13570570110	570	570	110	13.5	526	65	877	95	1053	105	H13
31	H13630630110	630	630	110	16.5	643	65	1072	95	1286	105	H13
32	H13915610110	915	610	110	23.2	904	65	1507	95	1808	105	H13
33	H13968484110	968	484	110	19.5	759	65	1265	95	1518	105	H13
34	H131170570110	1170	570	110	27.7	1080	65	1801	95	2161	105	H13
35	H1311701170110	1170	1170	110	56.9	2218	65	3696	95	4435	105	H13
36	H131220610110	1220	610	110	30.9	1206	65	2009	95	2411	105	H13

Note: Pressure drop ±10%

FAQ

Q1: Can the product be customized?

A1: Yes, customized filters are available.

Q2: Are you a factory or trading company?

A2: We are Top 5 professional factory with rich experience in clean room engineering in China,and we have 15 patents for our products.

Q3: How long is the delivery time?

A3: It depends on the order quantity. Usually it takes about 7 to 15 working days after receiving your deposit.

Q4: How about the shipment?

A4: By sea, by air or by express, according to the Qty and your demand.
